Fiat 850

The Fiat 850 is a tractor produced by Fiat. It is equipped with a 301.4 ci 4.9 L engine. The rated power output is 85 hp 63.4 kW. Transmission: 16 forward and 4 reverse. Operating weight: 6835 to 8068 pounds.

Overview

	1969 - 1975 Utility tractor
1969 - 1975
Utility tractor

Production
Manufacturer	Fiat
Utility tractor

Fiat 850 Engine
Fiat 4.9L 4-cyl diesel
Fuel tank	22.7 gal 85.9 L
Engine details ...

Fiat 850 Power
Engine	85 hp 63.4 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Steering	manual
Steering	power OptOptional
Wet disc brakes
Open operator station.

Hydraulics
Type	open center
Pump flow	8.9 gpm 33.7 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	6500 lbs 2948 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1938
	1000@2038

Dimensions & Tires
2WD Wheelbase	93 inches 236 cm
4WD Wheelbase	94.4 inches 239 cm
Weight	6835 to 8068 pounds
Front tire	7.50-2
2WD Rear tire	13.6/12-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References
850 published in 1971, by Fiat
850 DT published in 1971, by Fiat

Engine

Engine Detail — 301.4 ci / 4.9 L Diesel

Manufacturer	Fiat CO3/80
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	301.4 ci 4.9 L
Bore/Stroke	4.33x5.12 inches 110 x 130 mm
Power	85 hp 63.4 kW
Fuel system	direct injection
Compression	17:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
12-speed partially synchronized
16-speed creeper

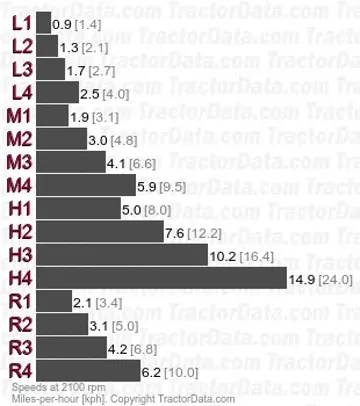

Transmission — 12 forward and 4 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 4 reverse
Clutch	cerametallic disc
Four synchronized gears in three ranges, plus reverse range.
With 16.9/14-34 rear tires.
Transmission
Type	creeper
Gears	16 forward and 4 reverse

Dimensions

Fiat 850 Tires
2WD Standard tires (ag)	Front: 7.50-2. Rear: 13.6/12-38
4WD Standard tires (ag)	Front: 12.4/11-24. Rear: 16.9/14-34
2WD Optional tires (ag)	Front: 6.50-20. Rear: 16.9/14-34

Dimensions
2WD Wheelbase	93 inches 236 cm
4WD Wheelbase	94.4 inches 239 cm
2WD Length	142.5 inches 361 cm
4WD Length	147.6 inches 374 cm
2WD Weight	6835 lbs 3100 kg
4WD Weight	8068 lbs 3659 kg
2WD Ground clearance	20.3 inches 51 cm
4WD Ground clearance	15.5 inches 39 cm
2WD Front tread	54.6 to 78 inches 138 to 198 cm
4WD Front tread	66.3/70.2 inches 168/178 cm
Rear tread	58.5 to 82.6 inches 148 to 209 cm

Fiat 850 Height
2WD Steering wheel	68.9 inches 175 cm
4WD Steering wheel	70.6 inches 179 cm
2WD Hood	61 inches 154 cm
4WD Hood	63.8 inches 162 cm

Photos

Fiat 850 tractor photo
