Fiat 955C

The Fiat 955C is a tractor produced by Fiat. It is equipped with a 279 ci 4.6 L engine. The rated power output is 88 hp 65.6 kW. Transmission: 8 forward and 4 reverse. Drive type: crawler. Operating weight: 13051 lbs 5919 kg.

Overview

	1981 - 1984 55 SeriesAgricultural Crawler tractor
1981 - 1984
55 Series
Agricultural Crawler tractor

Production
Manufacturer	Fiat
Agricultural Crawler tractor

Fiat 955C Engine
Fiat 4.6L 5-cyl diesel
Fuel tank	45 gal 170.3 L
Engine details ...

Fiat 955C Transmission
8-speed gear
Transmission details ...

Fiat 955C Power
Engine	88 hp 65.6 kW

Mechanical
Drive	crawler
Final drives	spur gear
Band brakes
Two-post ROPS with canopy.

Hydraulics
Type	open center
Pressure	2460 psi 169.6 bar
Rear valves	2 to 4
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	III/II OptOptional

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2227

Dimensions & Tracks
Weight	13051 lbs 5919 kg
19.7-inch tracks
Full dimensions and tracks ...

Electrical
Charging system	alternator
Charging amps	45
Battery volts	12

References
Compect Crawler Tractors 66 & 88 HP published in 1982, by Hesston

Engine

Engine Detail — 279 ci / 4.6 L Diesel

Manufacturer	Fiat 8055
Fuel Type	Diesel
Configuration	5-cylinder, liquid-cooled
Displacement	279 ci 4.6 L
Bore/Stroke	4.05x4.33 inches 103 x 110 mm
Power	88 hp 65.6 kW
Fuel system	direct injection
Air cleaner	dry
Pre-heating	thermostart
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

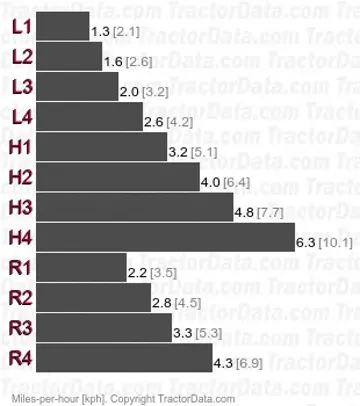

Transmission — 8 forward and 4 reverse gear

Type	gear
Gears	8 forward and 4 reverse
Clutch	304.8mm wet disc

Dimensions

Fiat 955C Tracks
Width	19.7 inches 50 cm
Length on ground	78 inches 198 cm
Area on ground	3073 in² 2.0 m²
Ground pressure	4.1 psi 0.3 bar

Dimensions
Length	140.1 inches 355 cm
Width	76.8 inches 195 cm
Height (hood)	55.1 inches 139 cm
Height (exhaust)	94.5 inches 240 cm
Operating weight	13051 lbs 5919 kg
Gauge	57 inches 144 cm

Photos

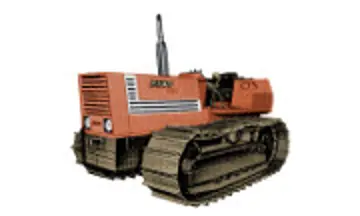

Fiat 955C tractor photo
