Ford 5095
The Ford 5095 is a tractor produced by Ford. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: Dual Power.
Engine Power
Diesel (listed): 95 hp / 70.8 kW
Fuel & Capacities
Diesel
Transmission
Dual Power
Overview
 | Row-Crop tractor | Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Ford |
Row-Crop tractor | |
Built in Andenne, Belgium | |
The Ford 5095 was converted by EVA of Belgium using a Ford indutrial engine and cast-iron frame. | |
Ford 5095 Engine | |
|---|---|
Ford 6-cyl diesel | |
Engine details ...  |
Ford 5095 Transmission | |
|---|---|
14-speed two-speed power shift | |
Transmission details ...  |
Ford 5095 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — Diesel
Manufacturer | Ford 2704E |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled inline |
Power | 95 hp
70.8 kW |
Transmission
Transmission — Dual Power
Transmission | Dual Power |
Type | two-speed power shift |
Gears | 14 forward and 4 reverse |
Dimensions
Ford 5095 Tires |
|---|
Dimensions |
|---|
Photos

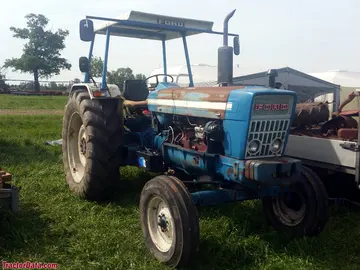

Ford 5095
Recommended Implements & Sizing Guide
Engineering recommendations for Ford 5095 based on its 95 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford 5095.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford 5095 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford 5095.
Converted Equivalents:
Horsepower (HP)95 hp
Kilowatts (kW)70.8 kW
Metric Horsepower (PS / CV)96.3 PS
Direct Competitor Comparison
Compare Ford 5095 against same-era industry alternatives in the same horsepower class.
Current Model
Ford
Ford 5095
Engine Power:Diesel (listed): 95 hp / 70.8 kW
★ Baseline Reference
