ford 941
 | 1958 - 1962
901 Powermaster SeriesRow-Crop tractor | 1958 - 1962 | 901 Powermaster Series | Row-Crop tractor |
|---|---|---|---|---|
1958 - 1962 | ||||
901 Powermaster Series | ||||
Row-Crop tractor | ||||
1958 - 1962 | |
|---|---|
901 Powermaster Series | |
Row-Crop tractor |
Engine options | |
|---|---|
Ford 2.8L 4-cyl gasoline | |
Ford 2.8L 4-cyl LP gas | |
Ford 2.8L 4-cyl diesel |
Engine Detail | |
|---|---|
Ford EAF | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled vertical overhead valve | |
Displacement | 172 ci
2.8 L |
Bore/Stroke | 3.90x3.60 inches
99 x 91 mm |
Power | 62.6 hp
46.7 kW |
Air cleaner | oil bath |
Compression | 7.5:1 |
Rated RPM | 2000 |
Torque | 166 lb-ft
225.1 Nm |
Torque RPM | 1600 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Coolant capacity | 15 qts
14.2 L |
Sparkplug gap | 0.027 inches
0.686 mm |
Point gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.015 inches (hot)
0.381 mm |
Exhaust valve clearance | 0.015 inches (hot)
0.381 mm |

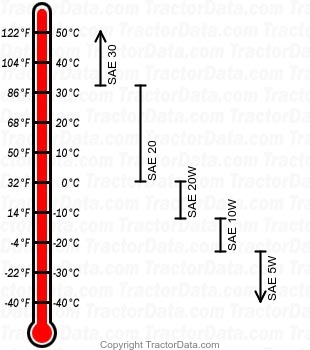

Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Oil change | 100 h |
Ford 941 Engine | |
|---|---|
 |
Engine Detail | |
|---|---|
Ford EAF | |
LP gas | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 172 ci
2.8 L |
Bore/Stroke | 3.90x3.60 inches
99 x 91 mm |
Air cleaner | oil bath |
Compression | 8.65:1 |
Rated RPM | 2200 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Sparkplug gap | 0.027 inches
0.686 mm |
Point gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.015 inches (hot)
0.381 mm |
Exhaust valve clearance | 0.015 inches (hot)
0.381 mm |
Engine Detail | |
|---|---|
Ford | |
diesel | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 172 ci
2.8 L |
Bore/Stroke | 3.90x3.60 inches
99 x 91 mm |
Power | 56.3 hp
42.0 kW |
Air cleaner | oil bath |
Compression | 16.8:1 |
Rated RPM | 2200 |
Torque | 140.4 lb-ft
190.4 Nm |
Torque RPM | 1400 |
Firing order | 1-2-4-3 |
Starter volts | 12 |
Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
