Ford Golden Jubilee NAA
The Ford Golden Jubilee NAA is a tractor produced by Ford. It is equipped with a 134 ci 2.2 L engine. The rated power output is 31.14 hp 23.2 kW. Transmission: Ford. Operating weight: 2550 to 2814 pounds.
Overview
 | 1953 - 1954
Utility tractor |
|---|---|
1953 - 1954 | |
Utility tractor | |
1953 - 1954 | |
|---|---|
Utility tractor |
Production | |
|---|---|
Manufacturer | Ford |
Utility tractor | |
Built in Highland Park, Michigan, USA | |
Total built | 128,965 |
Original price was $1,560 in 1954 | |
The Ford NAA "Golden Jubilee" was released as part of the 50th anniversary of Ford. The 1953 model (production began in September 1952) had a special nose badge noting the anniversary. | |
Ford NAA Engine | |
|---|---|
Ford 2.2L 4-cyl gasoline | |
Engine details ...  |
Ford NAA Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Ford NAA Power | |
|---|---|
Drawbar (claimed) | 20.2 hp
15.1 kW |
PTO (claimed) | 30.15 hp
22.5 kW |
Plows | 2 *Two 16-inch plows. Use of three 14-inch was common |
Drawbar (tested) | 26.8 hp
20.0 kW |
Belt (tested) | 31.14 hp
23.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Differential mechanical drum brakes | |
Open operator station |
Photos | |
|---|---|
 | |
Ford NAA photos...  |
Capacity | |
|---|---|
Fuel | 11 gal
41.6 L |
Hydraulic system | 2 gal
7.6 L |
Rear axle | 8 qts
7.6 L |
Hydraulics | |||||
|---|---|---|---|---|---|
Type | live | ||||
Capacity | 2 gal
7.6 L | ||||
Pressure | 2000 psi
137.9 bar | ||||
Pump flow | 4.8 gpm
18.2 lpm | ||||
Oil type | 32oF [0oC]↑ : Type A Hydraulic Oil 32oF [0oC]↓ : Type C Hydraulic Oil | 32oF [0oC]↑ | : Type A Hydraulic Oil | 32oF [0oC]↓ | : Type C Hydraulic Oil |
32oF [0oC]↑ | : Type A Hydraulic Oil | ||||
32oF [0oC]↓ | : Type C Hydraulic Oil | ||||
Steering press. | 1750 psi
120.7 bar | ||||
32oF [0oC]↑ | : Type A Hydraulic Oil |
|---|---|
32oF [0oC]↓ | : Type C Hydraulic Oil |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position and draft control |
Rear lift | 800 lbs
362 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.125) |
Engine RPM | 545@1500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 73.875 inches
187 cm |
Weight | 2550 to 2814 pounds |
Front tire | 5.50-16 |
Rear tire | 10-28 |
Full dimensions and tires ...  | |

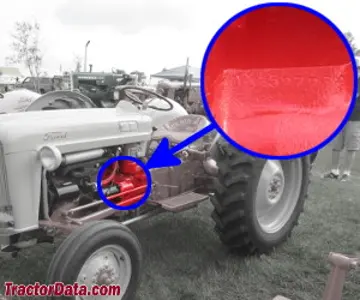

NAA Serial Number Location | |
|---|---|
 | |
Front of engine block (early) or left side of transmission case (later). |
NAA Serial Numbers | |
|---|---|
1952 | NAA 1 |
1953 | NAA 4930 |
1954 | NAA 77478 |
Final | NAA 128965 |
FAQ: How to read a serial number table. | |
Links | |
|---|---|
N Tractor Club: |
Belt Pulley | |
|---|---|
Diameter | 9 inches
22 cm |
RPM | 1358 |
Speed | 3199 ft/min
975.06 meters/min |
Electrical | |
|---|---|
Ground | positive |
Charging system | generator |
Charging amps | 20 |
Battery volts | 6 |
References | |
|---|---|
 | |
New Ford Tractor published in 1953 | |
Onwer's Manual Model NAA (T-400-K52) published in 1952 |
Engine
| 1953 - 1954
Utility tractor |
|---|---|
1953 - 1954 | |
Utility tractor | |
1953 - 1954 | |
|---|---|
Utility tractor |
Engine Detail | |
|---|---|
Ford | |
gasoline | |
4-cylinder 8-valve | |
liquid-cooled | |
Displacement | 134 ci
2.2 L |
Bore/Stroke | 3.4375x3.60 inches
87 x 91 mm |
Compression | 6.6:1 |
Rated RPM | 2000 |
Idle RPM | 450-2000 |
Operating RPM | 1500-2000 |
Torque | 110 lb-ft
149.2 Nm |
Torque RPM | 1400 |
Firing order | 1-2-4-3 |
Starter volts | 6 |
Coolant capacity | 15 qts
14.2 L |
Sparkplug | H-10 14mm |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.025 inches
0.635 mm |
Engine Oil | |
|---|---|
 | |
Oil capacity | 5 qts
4.7 L |
Ford NAA Engine | |
|---|---|
 |
Transmission
| 1953 - 1954
Utility tractor |
|---|---|
1953 - 1954 | |
Utility tractor | |
1953 - 1954 | |
|---|---|
Utility tractor |
Transmission | |||||
|---|---|---|---|---|---|
Transmission | Ford | ||||
Type | gear | ||||
Gears | 4 forward and 1 reverse | ||||
Clutch | dry disc | ||||
Oil capacity | 5 qts
4.7 L | ||||
Oil type | 32oF [0oC]↑ : SAE90 32oF [0oC]↓ : SAE80 | 32oF [0oC]↑ | : SAE90 | 32oF [0oC]↓ | : SAE80 |
32oF [0oC]↑ | : SAE90 | ||||
32oF [0oC]↓ | : SAE80 | ||||
Tractor must be stopped, and clutch used, to shift gears. | |||||
32oF [0oC]↑ | : SAE90 |
|---|---|
32oF [0oC]↓ | : SAE80 |
Speeds | |
|---|---|
 |
Dimensions
| 1953 - 1954
Utility tractor |
|---|---|
1953 - 1954 | |
Utility tractor | |
1953 - 1954 | |
|---|---|
Utility tractor |
Ford NAA Tires | |
|---|---|
Ag front | 5.50-16 |
6.00-16 | |
Ag rear | 10-28 |
Dimensions | |
|---|---|
Wheelbase | 73.875 inches
187 cm |
Length | 118.875 inches
301 cm |
Width | 64.75 inches
164 cm |
Height | 57.25 inches
145 cm |
Ground clearance | 13 inches*Clearance at tractor frame.
33 cm |
Clearance (front axle) | 21 inches
53 cm |
Clearance (rear axle) | 21 inches
53 cm |
Front tread | 48 to 76 inches
121 to 193 cm |
Rear tread | 48 to 76 inches
121 to 193 cm |
Ford NAA Weight | |
|---|---|
Shipping | 2550 lbs
1156 kg |
Operating | 2814 lbs
1276 kg |
Ballasted | 4392 lbs
1992 kg |
Tests
| 1953 - 1954
Utility tractor |
|---|---|
1953 - 1954 | |
Utility tractor | |
1953 - 1954 | |
|---|---|
Utility tractor |
Nebraska Tractor Test 494 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 494 | |
|---|---|
Gasoline 5-speed 2WD
May 22 - June 1, 1953
Link: Nebraska Tractor Test 494 file | |
Belt power (max) | 31.14 hp
23.2 kW |

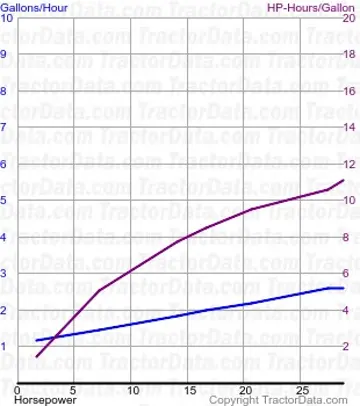

Belt fuel use (max) | 2.9 gal/hour
11.0 l/hour |
Drawbar performance | |
Max power | 26.8 hp
20.0 kW |
Gear 2 used for power test. | |
Max pull | 3,232 lbs
1466 kg |
Gear 1 used for pull test. | |
Photos
Ford Golden Jubilee NAA
Ford Golden Jubilee NAA
Ford Golden Jubilee NAA
Hood badge on the 1953 Ford Golden Jubilee

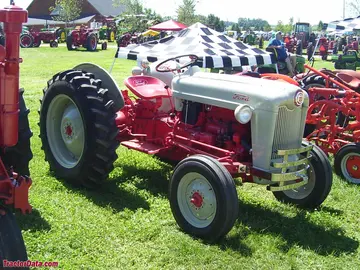

Ford NAA.
