Ford 140
The Ford 140 is a tractor produced by Ford Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 785 lbs 356 kg.
Overview
 | 1969 - 1971
Garden tractorJacobsen built
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Garden tractor | |
Ford 140 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Ford 140 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Tractor hitch | |
|---|---|
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 43 inches
109 cm |
Weight | 785 lbs
356 kg |
Front tire | 16x5.50-8 |
Rear tire | 23x8.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Industrial Tractors & Equipment Specifications 1969 published by Ford | |
Lawn and Garden Tractors published in 1970, by Ford | |
Lawn and Garden Tractors published in 1970, by Ford | |
Engine Repair Manual (SE 3234) published in 1968 |
Engine
Engine Detail — 512 cc / 31.27 ci Gasoline
Manufacturer | Kohler K321 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.50x3.25 inches
89 x 83 mm |
Power (gross) | 14 hp
10.4 kW |
Air cleaner | dry |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Ford 140 Tires | |
|---|---|
Ag rear | 23x8.50-12 |
Lawn/turf front | 16x5.50-8 |
Lawn/turf rear | 23x8.50-12 |
Dimensions | |
|---|---|
Wheelbase | 43 inches
109 cm |
Length | 61 inches
154 cm |
Width | 34 inches
86 cm |
Height (steering wheel) | 39 inches
99 cm |
Weight | 785 lbs
356 kg |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

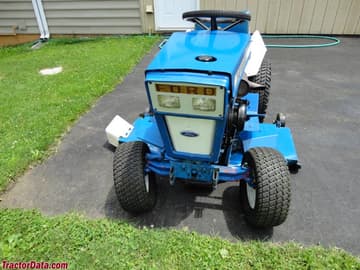

Ford 140 with replacement engine.
Ford 140 with replacement engine.
Ford 140 with replacement engine.
Ford 140 with replacement engine.
Ford 140 front-mounted snow blower.
Ford 140 operator station and controls..
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford 140.
Estimated Continuous Field Runtime: 2.7 hrs
Approximately 2.7 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).
Engine Crankcase Oil
Transmission & Hydraulic System
Engine Cooling System
Ford Lawn Tractors Ford 140 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford 140.
Converted Equivalents:
