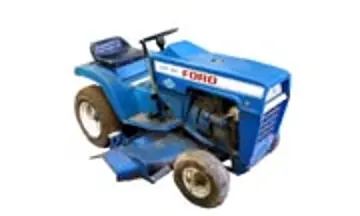

Ford LGT-125

The Ford LGT-125 is a tractor produced by Ford Lawn Tractors. It is equipped with a 476 cc 29.07 ci engine. The listed engine power is Gasoline (gross): 12 hp / 8.9 kW. Transmission: infinite forward and reverse (two-range). Operating weight: 790 lbs 358 kg.

Overview

	1972 - 1983 Model year 1972-19761977-1983 LGT SeriesGarden tractorJacobsen built LGT Series Garden tractor Jacobsen built

Production
Distributor	Ford
Manufacturer	Jacobsen
Garden tractor
Built in Racine, Wisconsin, USA

Variants
GT-12H	similar Jacobsen model

Ford LGT-125 Engine
12HP Kohler 476cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Ford LGT-125 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Integral mechanical band brakes
Open operator station. All-weather cab optional.

Tractor hitch
Rear Type	0 OptOptional
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	790 lbs 358 kg
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Buyer's Guide '73 published in 1973, by Ford
Lawn and Garden Tractors published in 1972, by Ford
Attachments for Ford Lawn and Garden Tractors published in 1973
Lawn and Garden Tractors published in 1973, by Ford
Lawn and Garden Tractors published in 1974, by Ford
Attachments for Ford Lawn and Garden Tractors published in 1973
LGT Series Repair Manual (SE 3772)

Engine

Engine Detail — 476 cc / 29.07 ci Gasoline

Manufacturer	Kohler K301AS
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Starter volts	12
Oil capacity	2.25 qts 2.1 L

Transmission

Transmission — infinite forward and reverse (two-range) shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (two-range)

Dimensions

Ford LGT-125 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12

Dimensions
Wheelbase	46 inches 116 cm
Length	71.5 inches 181 cm
Width	42 inches 106 cm
Height (steering wheel)	42 inches 106 cm
Weight	790 lbs 358 kg
Ground clearance	5.75 inches (front mounts) 14 cm
	14 inches (frame) 35 cm
Clearance (front axle)	9.1 inches 23 cm
Clearance (rear axle)	6.6 inches 16 cm
Clearance (drawbar)	8 inches 20 cm

Attachments

Attachment overview
42" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Ford 6ft Backhoe
Backhoe type	Ford 6ft Backhoe

Photos

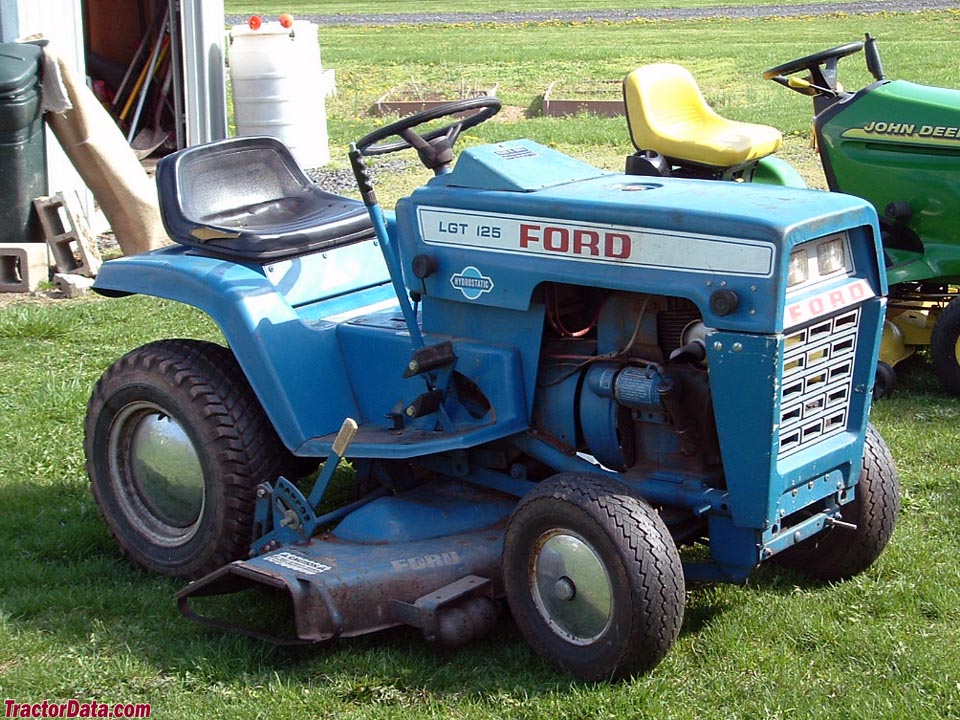

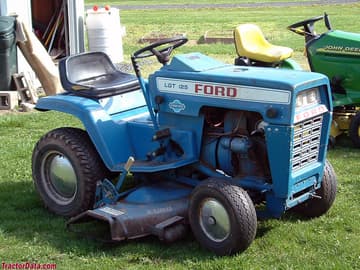

Ford LGT-125

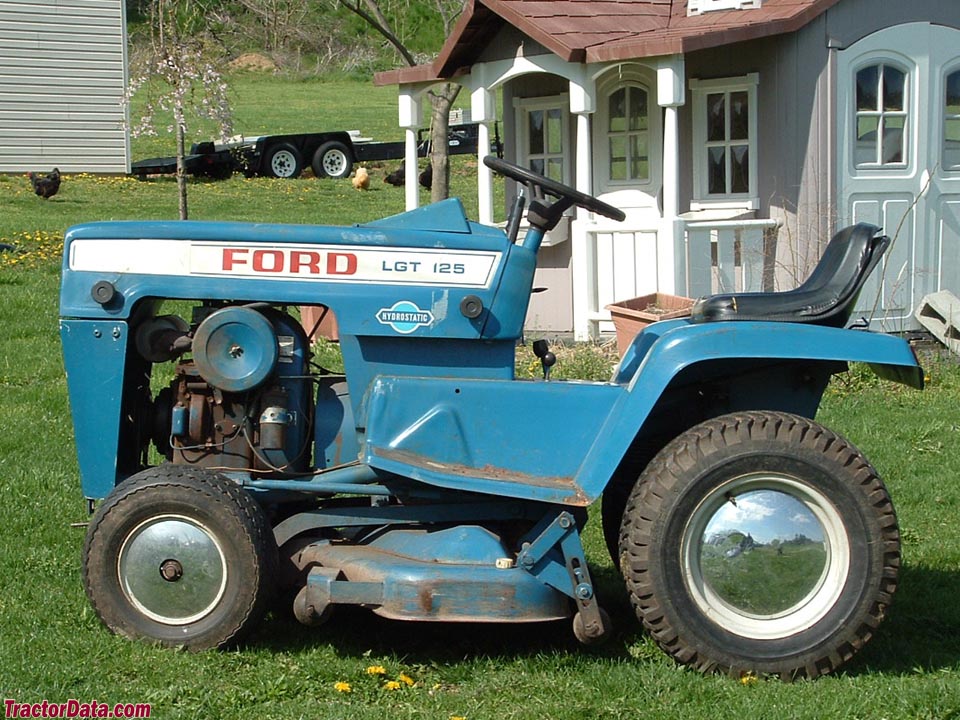

Ford LGT-125

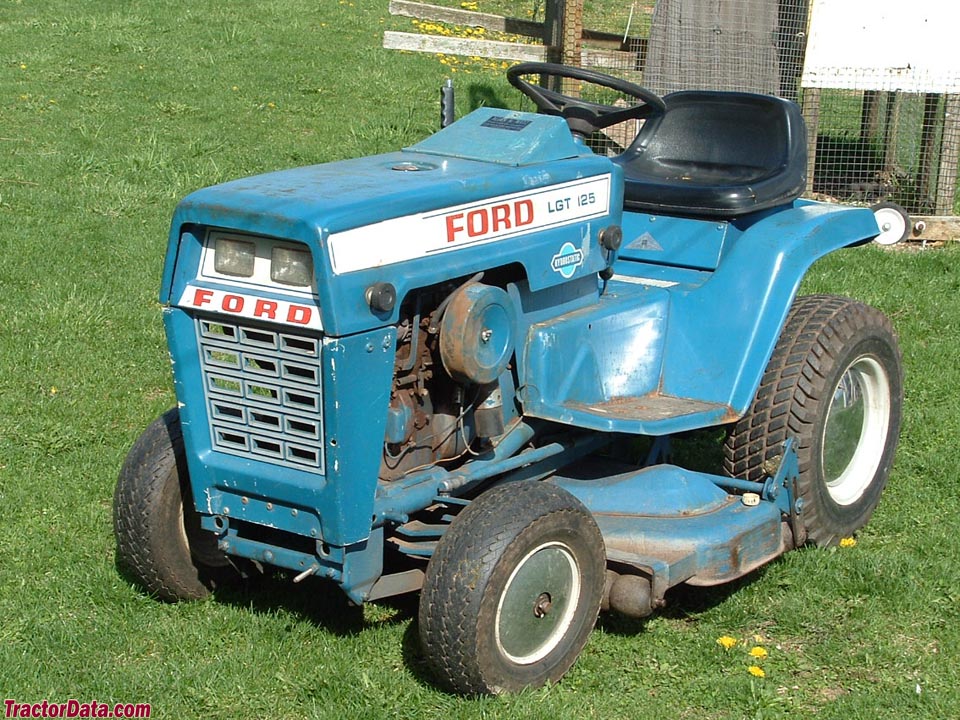

Ford LGT-125

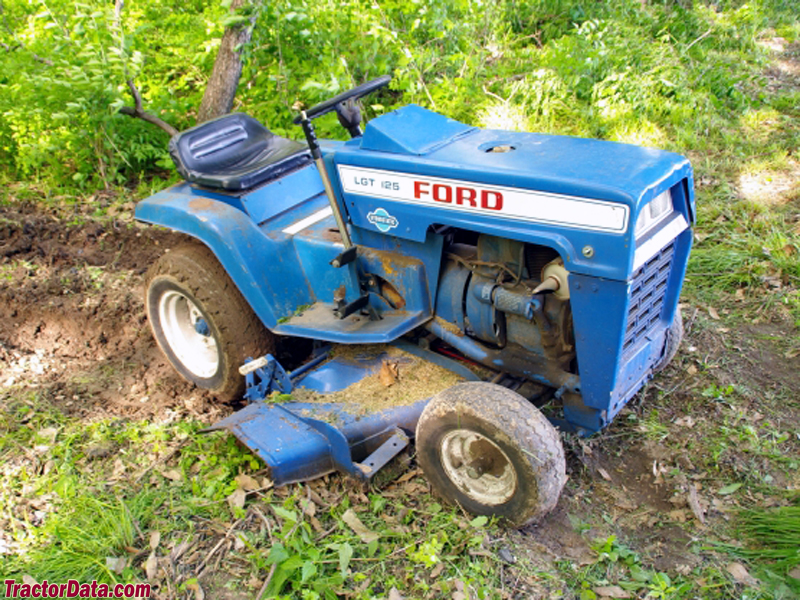

Ford LGT-125 with mower deck.
