Ford 70

The Ford 70 is a tractor produced by Ford Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 379 lbs 171 kg.

Overview

	1968 - 1973 Lawn tractorJacobsen built Lawn tractor Jacobsen built

Production
Distributor	Ford
Manufacturer	Jacobsen
Lawn tractor

Variants
70	recoil start
75	electric start

Ford 70 Engine
7HP Briggs & Stratton 275cc 1-cyl gasoline
Fuel tank	1 gal 3.8 L
Engine details ...

Ford 70 Transmission
3-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Dimensions & Tires
Wheelbase	42 inches 106 cm
Weight	379 lbs 171 kg
Front tire	13x5.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

References
Industrial Tractors & Equipment Specifications 1969 published by Ford
Buyer's Guide '73 published in 1973, by Ford
Lawn and Garden Tractors published in 1970, by Ford
Lawn and Garden Tractors published in 1970, by Ford
Lawn Tractors published in 1972, by Ford
Lawn Tractors published in 1973, by Ford

Engine

Engine Detail — 275 cc / 16.79 ci Gasoline

Manufacturer	Briggs & Stratton 170702
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	275 cc 16.79 ci
Bore/Stroke	3.00x2.375 inches 76 x 60 mm
Power (gross)	7 hp 5.2 kW
Air cleaner	dry
Rated RPM	3600
Starter type	manual recoil
Oil capacity	0.75 qts 0.7 L

Transmission

Transmission — 3 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	3 forward and 1 reverse

Dimensions

Ford 70 Tires
Lawn/turf front	13x5.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	42 inches 106 cm
Length	58 inches 147 cm
Width	32 inches 81 cm
Height (steering wheel)	37 inches 93 cm
Weight	379 lbs 171 kg

Attachments

Attachment overview
34" mid-mount mower deck
Snowblower
Blade

34" Mower deck
Type	mid-mount Ford
	2-blade
Cutting width	34 inches 86 cm

Photos

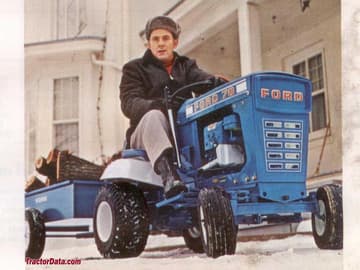

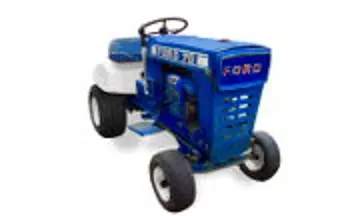

Ford 70
