Ford LT-75
The Ford LT-75 is a tractor produced by Ford Lawn Tractors. It is equipped with a 275 cc 16.79 ci engine. The listed engine power is Gasoline (listed): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 430 lbs 195 kg.
Engine Power
Gasoline (listed): 7 hp / 5.2 kW
Fuel & Capacities
1 gal
3.8 L
Transmission
3 forward and 1 reverse
Operating Weight
430 lbs
195 kg
Overview
 | 1973 - 1976
Lawn tractorJacobsen built
Lawn tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Lawn tractor | |
Ford LT-75 Engine | |
|---|---|
7HP Briggs & Stratton 275cc 1-cyl gasoline | |
Fuel tank | 1 gal
3.8 L |
Engine details ...  | |
Ford LT-75 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Weight | 430 lbs
195 kg |
Front tire | 13x5.50-6 |
Rear tire | 18x8.50-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn and Garden Tractors published in 1974, by Ford | |
Improve your lot with Ford Lawn and Garden Equipment published in 1976 |
Engine
Engine Detail — 275 cc / 16.79 ci Gasoline
Manufacturer | Briggs & Stratton 170702 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Displacement | 275 cc
16.79 ci |
Bore/Stroke | 3.00x2.375 inches
76 x 60 mm |
Power | 7 hp
5.2 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.1 qts
1.0 L |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
Ford LT-75 Tires | |
|---|---|
Lawn/turf front | 13x5.50-6 |
Lawn/turf rear | 18x8.50-8 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Length | 58 inches
147 cm |
Width | 32 inches
81 cm |
Height (steering wheel) | 37 inches
93 cm |
Weight | 430 lbs
195 kg |
Clearance (front axle) | 7 inches
17 cm |
Clearance (rear axle) | 5.5 inches
13 cm |
Clearance (drawbar) | 9 inches
22 cm |
Attachments
Attachment overview | |
|---|---|
34" mid-mount mower deck | |
Snowblower |
34" Mower deck | |
|---|---|
Type | mid-mount Ford |
2-blade | |
Cutting width | 34 inches
86 cm |
Photos

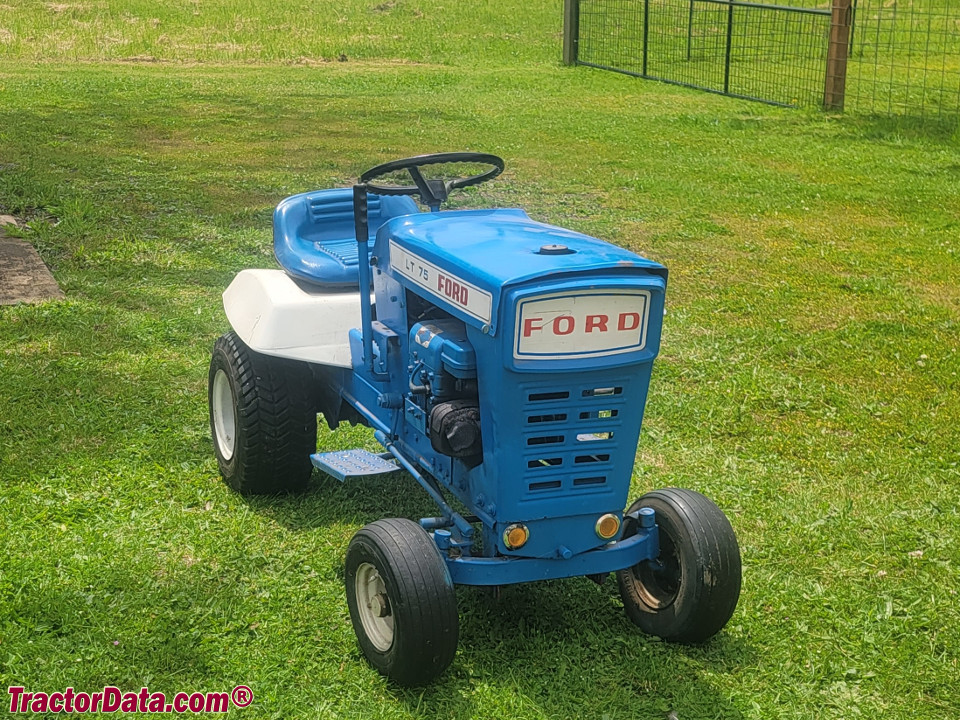

Ford LT-75, right side.

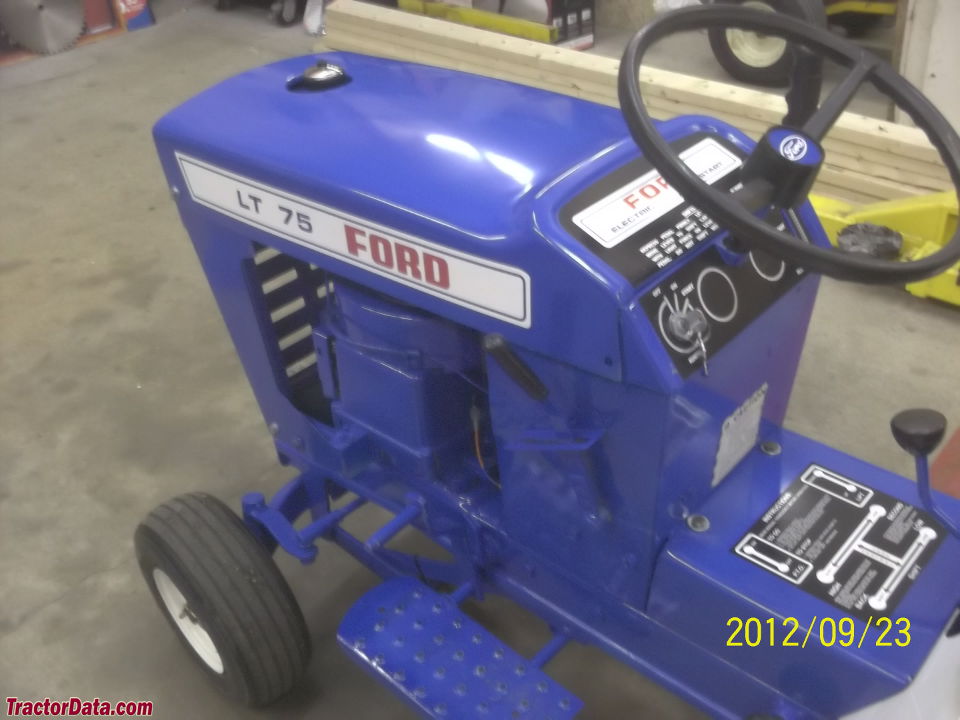

Ford LT-75, left side.

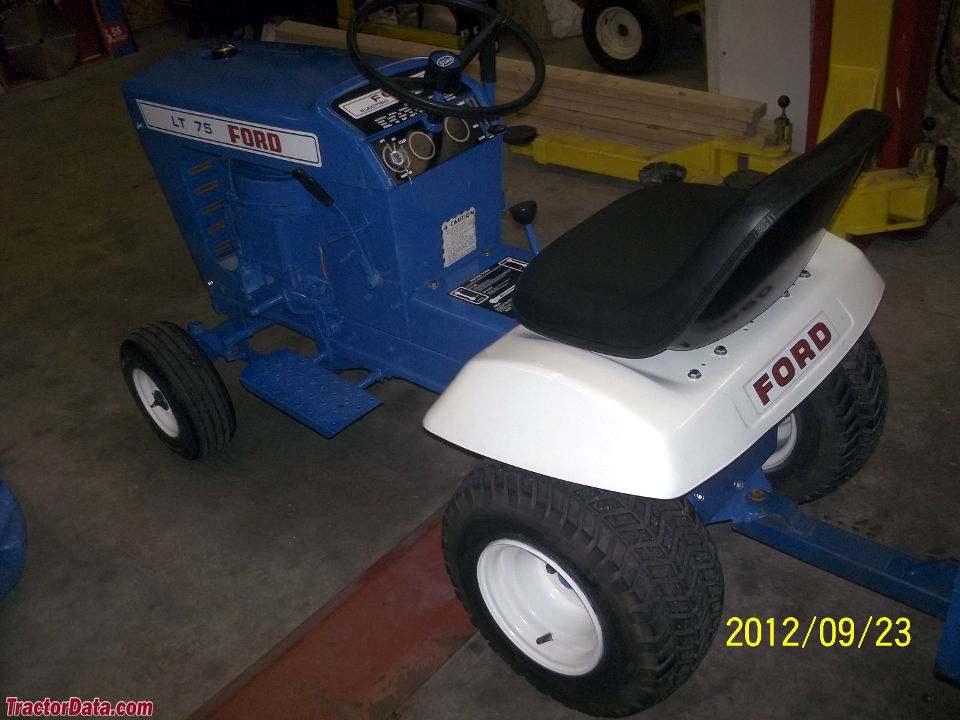

Ford LT-75, rear view.

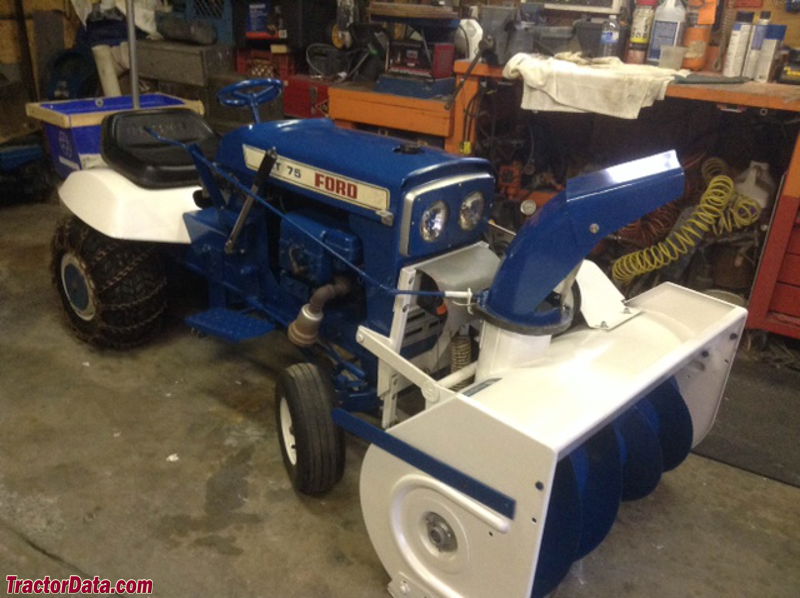

Ford LT-75 with snowblower.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LT-75.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford Lawn Tractors Ford LT-75 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LT-75.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
