Ford GT-65

The Ford GT-65 is a tractor produced by Ford Lawn Tractors. It is equipped with a 617 cc 37.7 ci engine. The listed engine power is Diesel (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1050 lbs 476 kg.

Overview

	1992 - 1997 GT SeriesGarden tractorShibaura built GT Series Garden tractor Shibaura built

Production
Distributor	Ford
Manufacturer	Shibaura
Garden tractor

Ford GT-65 Engine
14HP Shibaura 617cc 3-cyl diesel
Fuel tank	4.2 gal 15.9 L
Engine details ...

Ford GT-65 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Steering	power OptOptional
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	optional
Mid PTO	independent
Clutch	manual idler pulley
Front PTO	independent
Clutch	manual idler pulley

Dimensions & Tires
Wheelbase	49.8 inches 126 cm
Weight	1050 lbs 476 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery CCA	332
Battery volts	12

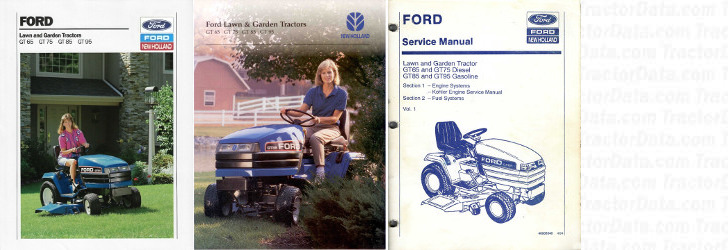

References
Lawn & Garden Tractors published in 1991, by Ford
Lawn & Garden Tractors published in 1995, by Ford
Service Manual GT Series (40006540) published in 1994

Engine

Engine Detail — 617 cc / 37.7 ci Diesel

Manufacturer	Shibaura E643
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled horizontal-shaft inline
Displacement	617 cc 37.7 ci
Bore/Stroke	2.52x2.52 inches 64 x 64 mm
Power (gross)	14 hp 10.4 kW
Air cleaner	dry
Pre-heating	glow plugs
	block heater OptOptional
Compression	23:1
Rated RPM	3200
Idle RPM	1400-3450
Firing order	1-2-3
Starter volts	12
Oil capacity	3.2 qts 3.0 L
Coolant capacity	3.5 qts 3.3 L

Transmission

Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	9.1 qts 8.6 L
	10.1 qts*Capacity with power steering. 9.6 L

Dimensions

Ford GT-65 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	49.8 inches 126 cm
Length	74.5 inches 189 cm
Width	39 inches 99 cm
Height (steering wheel)	45 inches 114 cm
Shipping weight	1050 lbs 476 kg
Ground clearance	6.2 inches 15 cm

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

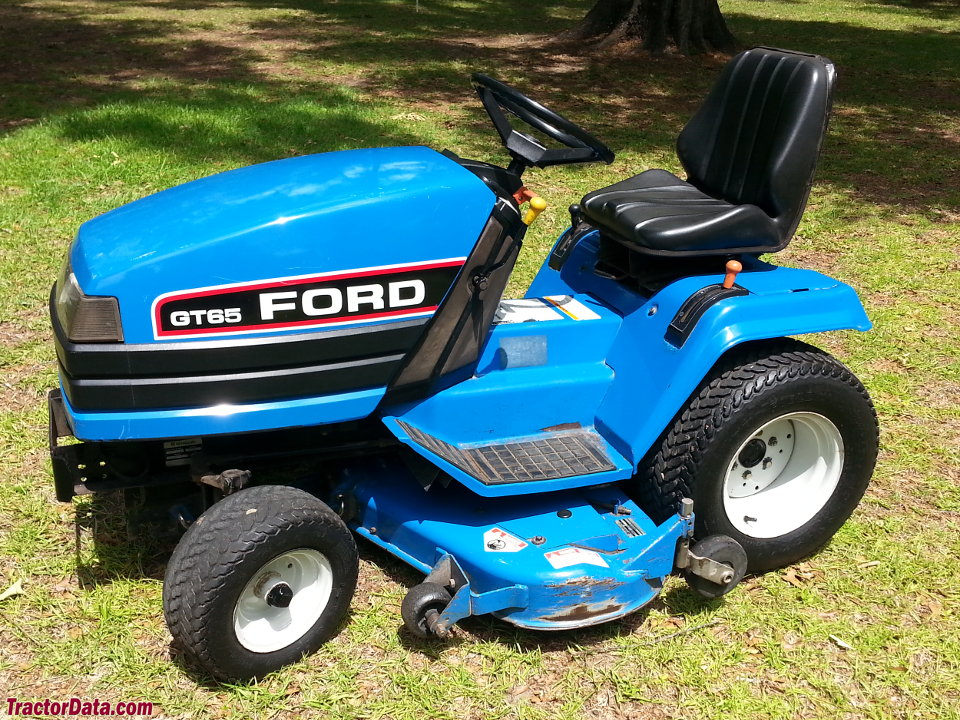

Ford GT65, left side.

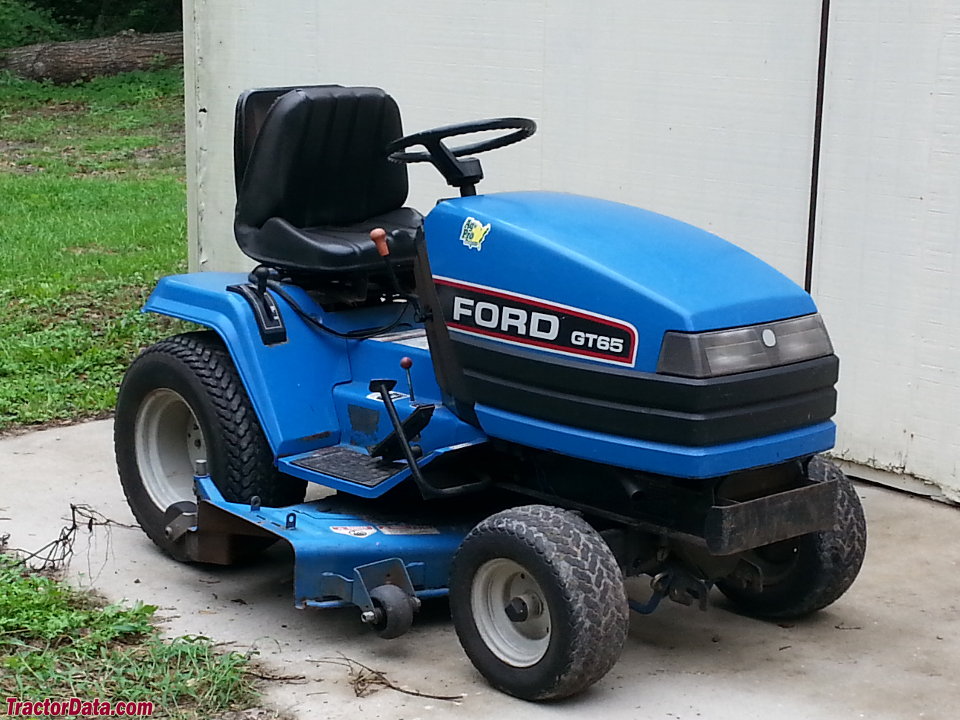

Ford GT65, right side.
