Ford LGT-14

The Ford LGT-14 is a tractor produced by Ford Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: 4 forward and 1 reverse. Operating weight: 790 to 880 pounds.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
4 gal 15.1 L
Transmission
4 forward and 1 reverse
Operating Weight
790 to 880 pounds

Overview

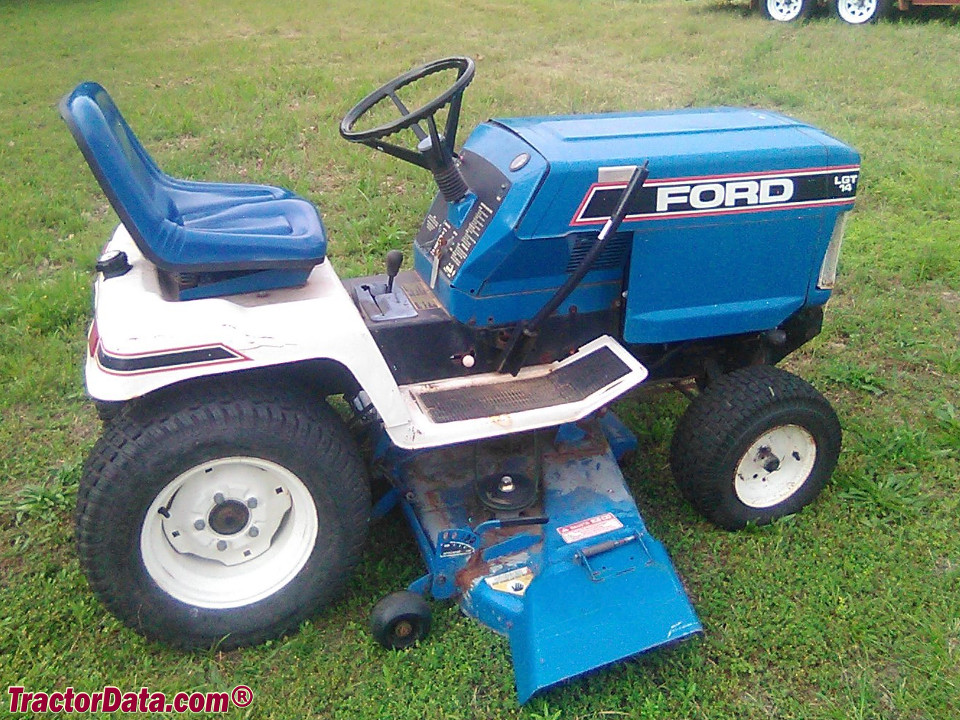

Ford LGT-14 tractor photo
1986 - 1987 Garden tractorGilson built Garden tractor Gilson built
Production
Distributor
Ford
Manufacturer
Gilson
Garden tractor
Variants
LGT-14
gear transmission
LGT-14H
hydrostatic transmission
LGT-14D
diesel engine
Ford LGT-14 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank
4 gal 15.1 L
Engine details ...
Ford LGT-14 Transmission
4-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual sector and pinion
Caliper disc on transaxle brakes
Open operator station.
Tractor hitch
Type
sleeve hitch
Dimensions & Tires
Wheelbase
49 inches 124 cm
Weight
790 to 880 pounds
Front tire
16x6.50-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
neghative
Battery CCA
220
Battery volts
12
References
LGT-14 references literature
Lawn, Yard and Garden Equipment published in 1986, by Ford
Lawn, Yard and Garden Equipment published in 1987, by Ford
Lawn, Yard and Garden Tractors - Riding Mowers published in 1988, by Ford

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer
Kohler M14
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
512 cc 31.27 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power (gross)
14 hp 10.4 kW
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — 4 forward and 1 reverse gear

Type
gear
Gears
4 forward and 1 reverse
Oil capacity
2 qts 1.9 L
LGT-14 gear speeds

Dimensions

Ford LGT-14 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
49 inches 124 cm
Length
73 inches 185 cm
Width
36.5 inches 92 cm
Height (steering wheel)
39.5 inches 100 cm
Shipping weight
790 lbs 358 kg
880 lbs (with 48" deck) 399 kg
Ground clearance
6.7 inches*Ground clearance at transmission. 17 cm
Clearance (front axle)
10.6 inches 26 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

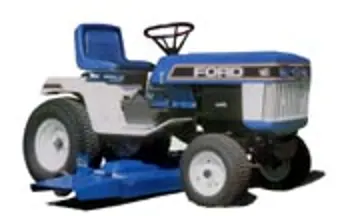

Ford LGT-14

Ford LGT-14

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LGT-14.

Estimated Continuous Field Runtime: 5.5 hrs

Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ford Lawn Tractors Ford LGT-14 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LGT-14.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
