Ford LGT-145
The Ford LGT-145 is a tractor produced by Ford Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (two-range). Operating weight: 797 lbs 361 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
infinite forward and reverse (two-range)
Operating Weight
797 lbs
361 kg
Overview
 | 1972 - 1983
Model year 1972-19761977-1983
LGT SeriesGarden tractorJacobsen built
LGT Series
Garden tractor
Jacobsen built |
|---|
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Variants | |
|---|---|
GT-14 | similar Jacobsen model |
Ford LGT-145 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Ford LGT-145 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Integral mechanical band brakes | |
Open operator station. All-weather cab optional. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | electric |
Dimensions & Tires | |
|---|---|
Wheelbase | 46 inches
116 cm |
Weight | 797 lbs
361 kg |
Front tire | 16x6.50-8 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Buyer's Guide '73 published in 1973, by Ford | |
Lawn and Garden Tractors published in 1972, by Ford | |
Attachments for Ford Lawn and Garden Tractors published in 1973 | |
Lawn and Garden Tractors published in 1973, by Ford | |
Lawn and Garden Tractors published in 1974, by Ford | |
Attachments for Ford Lawn and Garden Tractors published in 1973 | |
LGT Series Repair Manual (SE 3772) |
Engine
Engine Detail — 512 cc / 31.27 ci Gasoline
Manufacturer | Kohler K321AS |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.50x3.25 inches
89 x 83 mm |
Power (gross) | 14 hp
10.4 kW |
Starter volts | 12 |
Oil capacity | 2.25 qts
2.1 L |
Transmission
Transmission — infinite forward and reverse (two-range) shaft-driven hydrostatic
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (two-range) |
 | |
Dimensions
Ford LGT-145 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 46 inches
116 cm |
Length | 71.5 inches
181 cm |
Width | 42 inches
106 cm |
Height (steering wheel) | 42 inches
106 cm |
Weight | 797 lbs
361 kg |
Ground clearance | 5.75 inches (front mounts)
14 cm |
14 inches (frame)
35 cm | |
Clearance (front axle) | 9.1 inches
23 cm |
Clearance (rear axle) | 6.6 inches
16 cm |
Clearance (drawbar) | 8 inches
20 cm |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
50" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Ford 6ft Backhoe | |
|---|---|
Backhoe type | Ford 6ft Backhoe |

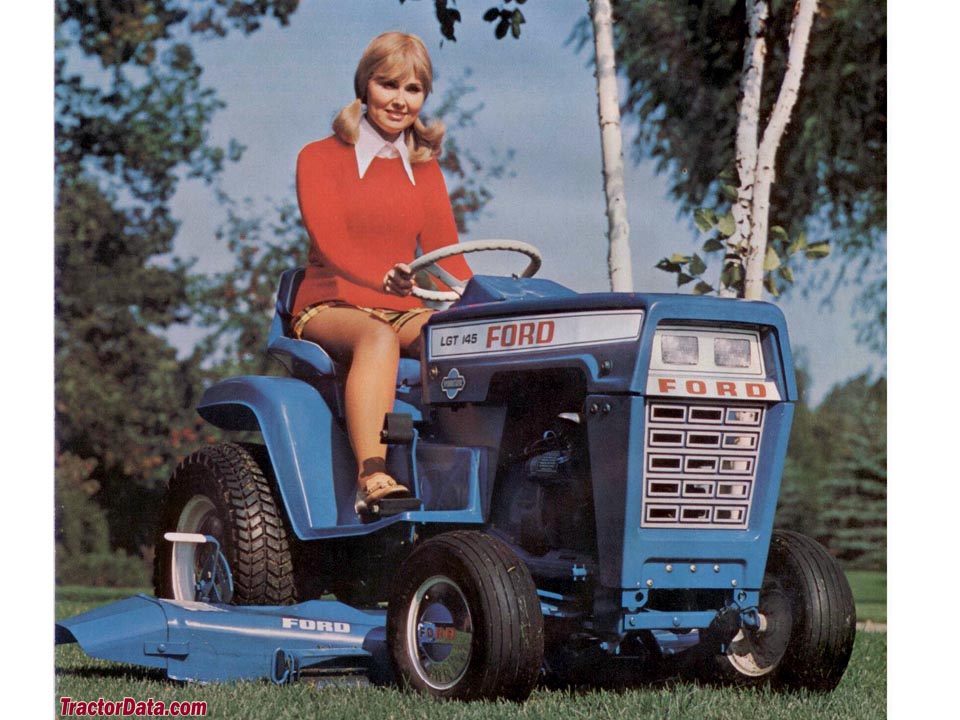

Photos
Ford LGT-145
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LGT-145.
Estimated Continuous Field Runtime: 2.7 hrs
Approximately 2.7 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ford Lawn Tractors Ford LGT-145 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LGT-145.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
