Ford LGT-14D

The Ford LGT-14D is a tractor produced by Ford Lawn Tractors. It is equipped with a 617 cc 37.7 ci engine. The listed engine power is Diesel (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1005 lbs 455 kg.

Overview

	1987 - 1991 Garden tractor

Production
Manufacturer	Ford
Garden tractor

Variants
LGT-14	gear transmission
LGT-14H	hydrostatic transmission
LGT-14D	diesel engine

Ford LGT-14D Engine
14HP Shibaura 617cc 3-cyl diesel
Fuel tank	2.6 gal 9.8 L
Engine details ...

Ford LGT-14D Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Disc brakes
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	optional

Dimensions & Tires
Wheelbase	47.2 inches 119 cm
Weight	1005 lbs 455 kg
Front tire	16x6.50-8
Rear tire	23x10.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Battery CCA	332
Battery volts	12

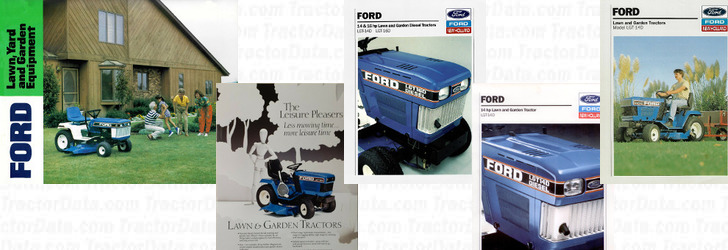

References
Lawn, Yard and Garden Equipment published in 1987, by Ford
The Leisure Pleasers published in 1991, by Ford
LGT-14D LGT-16D published in 1989, by Ford
LGT-14D published in 1988, by Ford
LGT-14D published by Ford

Engine

Engine Detail — 617 cc / 37.7 ci Diesel

Manufacturer	Shibaura
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	617 cc 37.7 ci
Bore/Stroke	2.5x2.5 inches 64 x 64 mm
Power (gross)	14 hp 10.4 kW
Air cleaner	dry
Pre-heating	block heater (optional)
Starter	electric
Starter volts	12
Oil capacity	2.7 qts 2.6 L
Coolant capacity	2.7 qts 2.6 L

Transmission

Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic

Type	shaft-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	9.6 qts 9.1 L

Dimensions

Ford LGT-14D Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x10.50-12

Dimensions
Wheelbase	47.2 inches 119 cm
Length	71 inches 180 cm
Width	39 inches 99 cm
Height (steering wheel)	47.6 inches 120 cm
Shipping weight	1005 lbs*Weight with 48 inch mower deck. 455 kg
Ground clearance	6.2 inches 15 cm

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Ford listed few attachments for diesel-powered LGT-14D. The tractor, however, could be equipped with a Category 0 rear three-point hitch and rear PTO, enabling it to use a wide variety of standard garden tractor attachments.
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

48" Mower deck
Type	mid-mount Ford
Cutting width	48 inches 121 cm
Cut height	1 to 4 inch 2 to 10 cm

Photos

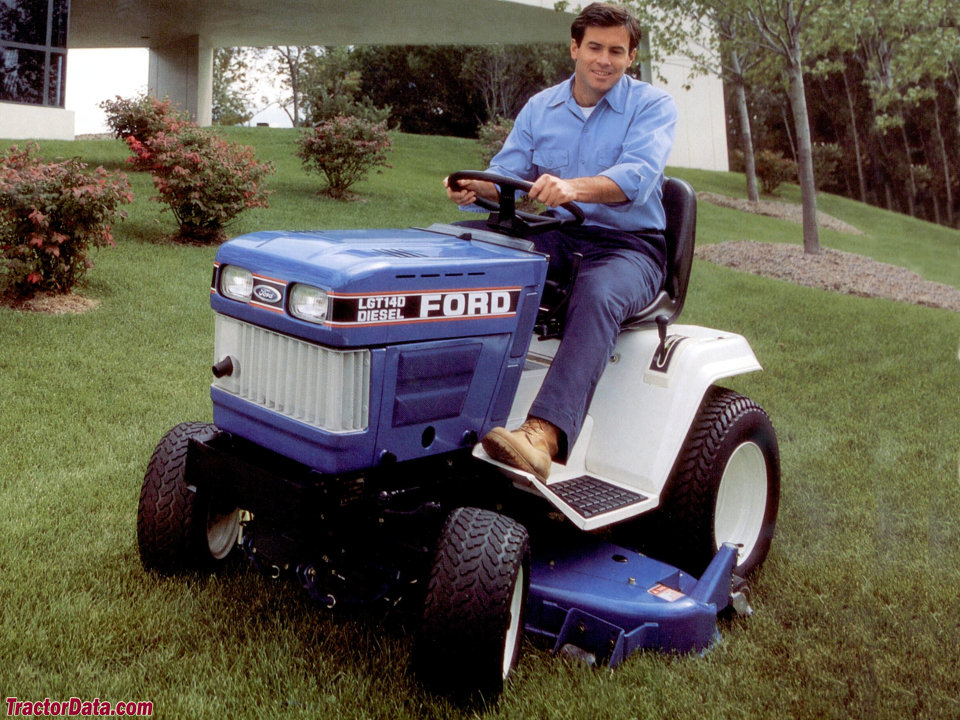

Ford LGT14D marketing photo.

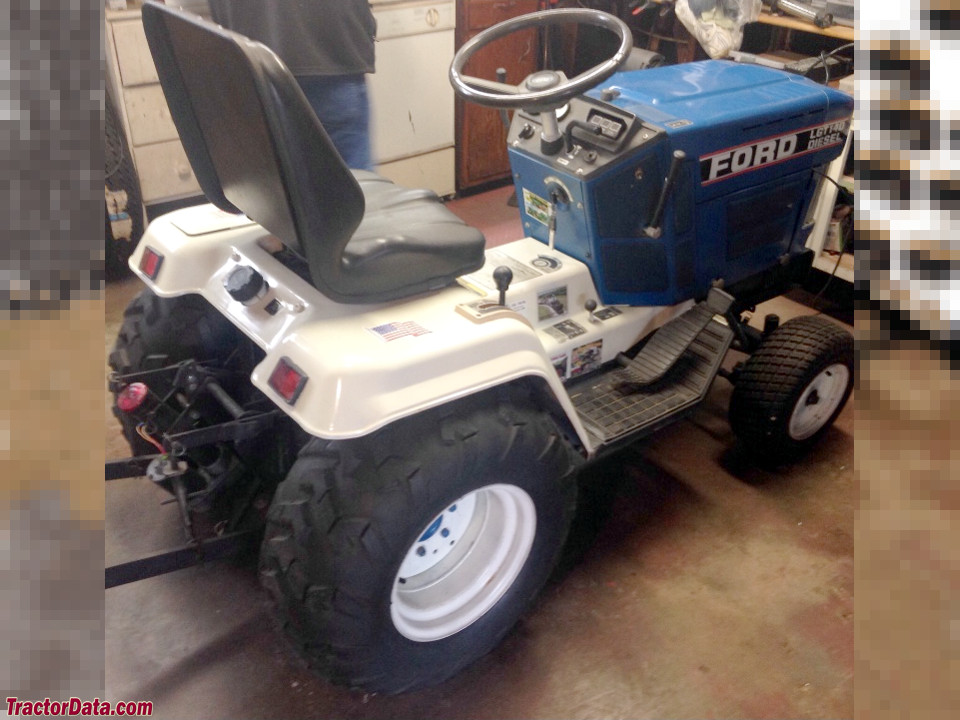

Ford LGT14D, right rear view.
