Ford LGT-14H

The Ford LGT-14H is a tractor produced by Ford Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 941 lbs*Weight with 48" mower deck. 426 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
4 gal 15.1 L
Transmission
infinite forward and reverse
Operating Weight
941 lbs*Weight with 48" mower deck. 426 kg

Overview

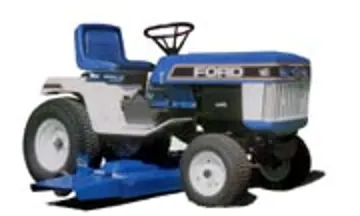

Ford LGT-14H tractor photo
1986 - 1987 Garden tractorGilson built Garden tractor Gilson built
Production
Distributor
Ford
Manufacturer
Gilson
Garden tractor
Variants
LGT-14
gear transmission
LGT-14H
hydrostatic transmission
LGT-14D
diesel engine
Ford LGT-14H Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank
4 gal 15.1 L
Engine details ...
Ford LGT-14H Transmission
hydostatic
Transmission details ...
Mechanical
Two-wheel drive
Steering
manual sector and pinion
Caliper disc on transaxle brakes
Open operator station.
Tractor hitch
Type
sleeve hitch
Dimensions & Tires
Wheelbase
49 inches 124 cm
Weight
941 lbs 426 kg
Front tire
16x6.50-8
Rear tire
23x10.50-12
Full dimensions and tires ...
References
LGT-14H references literature
Lawn, Yard and Garden Equipment published in 1986, by Ford
Lawn, Yard and Garden Equipment published in 1987, by Ford
Lawn, Yard and Garden Tractors - Riding Mowers published in 1988, by Ford

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer
Kohler M14
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled
Displacement
512 cc 31.27 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power (gross)
14 hp 10.4 kW
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — infinite forward and reverse hydostatic

Type
hydostatic
Gears
infinite forward and reverse
Oil capacity
6 qts 5.7 L
LGT-14H hydostatic speeds

Dimensions

Ford LGT-14H Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
49 inches 124 cm
Length
73 inches 185 cm
Width
36.5 inches 92 cm
Height (steering wheel)
39.5 inches 100 cm
Weight
941 lbs*Weight with 48" mower deck. 426 kg
Clearance (front axle)
10.6 inches 26 cm
Clearance (rear axle)
6.7 inches 17 cm

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

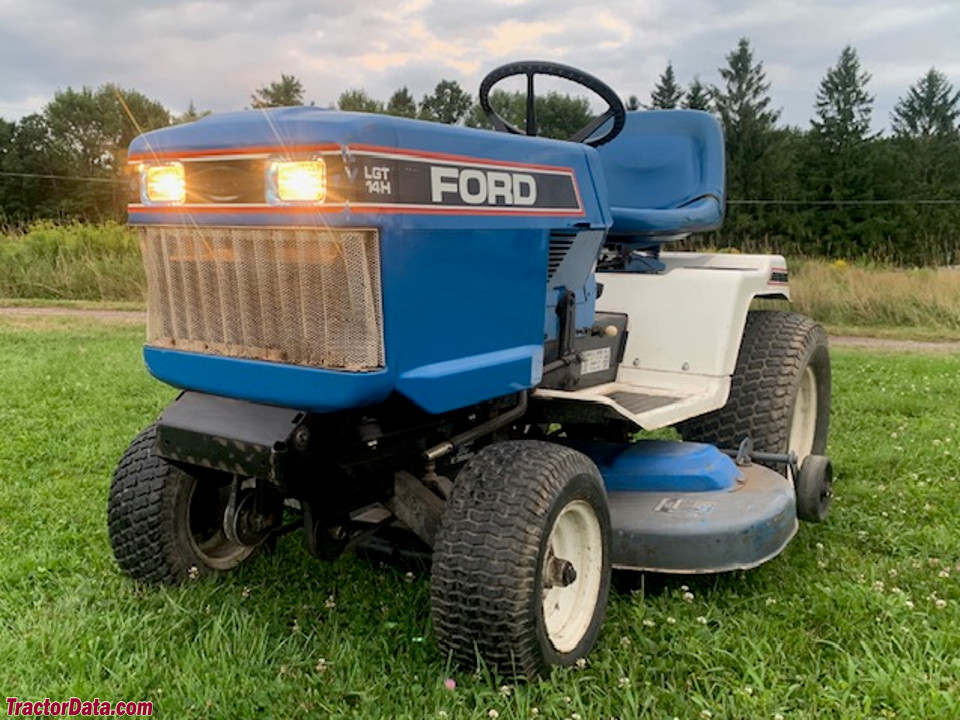

Ford LGT-14H

Ford LGT-14H

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Ford Lawn Tractors Ford LGT-14H.

Estimated Continuous Field Runtime: 5.5 hrs

Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Ford Lawn Tractors Ford LGT-14H Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Ford Lawn Tractors Ford LGT-14H.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
