Ford YT-14 9809209
The Ford YT-14 9809209 is a tractor produced by Ford Lawn Tractors. It is equipped with a 398 cc 24.3 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Peerless 801.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
Gasoline
Transmission
Peerless 801
Ford Lawn Tractors Ford YT-14 9809209 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.

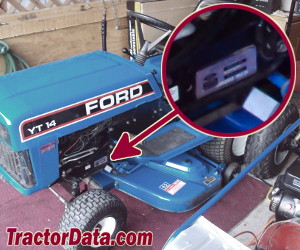

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1991 - 1992
YT SeriesLawn tractorLawn-Boy built |
|---|---|
1991 - 1992 | |
YT Series | |
Lawn tractor | |
Lawn-Boy built | |
1991 - 1992 | |
|---|---|
YT Series | |
Lawn tractor | |
Lawn-Boy built |
Production | |
|---|---|
Distributor | Ford |
Manufacturer | Lawn-Boy |
Lawn tractor | |
Ford YT-14 Engine | |
|---|---|
14HP Kohler 398cc 1-cyl gasoline | |
Engine details ...  |
Ford YT-14 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
The Leisure Pleasers published in 1991, by Ford |
Engine
| 1991 - 1992
YT SeriesLawn tractorLawn-Boy built |
|---|---|
1991 - 1992 | |
YT Series | |
Lawn tractor | |
Lawn-Boy built | |
1991 - 1992 | |
|---|---|
YT Series | |
Lawn tractor | |
Lawn-Boy built |
Engine Detail — 398 cc / 24.3 ci Gasoline
Manufacturer | Kohler CV14 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 398 cc
24.3 ci |
Bore/Stroke | 3.43x2.64 inches
87 x 67 mm |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
| 1991 - 1992
YT SeriesLawn tractorLawn-Boy built |
|---|---|
1991 - 1992 | |
YT Series | |
Lawn tractor | |
Lawn-Boy built | |
1991 - 1992 | |
|---|---|
YT Series | |
Lawn tractor | |
Lawn-Boy built |
Transmission — Peerless 801
Transmission | Peerless 801 |
Type | gear |
Gears | 5 forward and 1 reverse |
Oil capacity | 0.9375 qts
0.9 L |
Oil type | lithium grease |
lithium grease |
|---|
Dimensions
| 1991 - 1992
YT SeriesLawn tractorLawn-Boy built |
|---|---|
1991 - 1992 | |
YT Series | |
Lawn tractor | |
Lawn-Boy built | |
1991 - 1992 | |
|---|---|
YT Series | |
Lawn tractor | |
Lawn-Boy built |
Ford YT-14 Tires |
|---|
Dimensions |
|---|
Attachments
| 1991 - 1992
YT SeriesLawn tractorLawn-Boy built |
|---|---|
1991 - 1992 | |
YT Series | |
Lawn tractor | |
Lawn-Boy built | |
1991 - 1992 | |
|---|---|
YT Series | |
Lawn tractor | |
Lawn-Boy built |
42" Mower deck | |
|---|---|
Type | mid-mount Ford |
manual lift | |
Cutting width | 42 inches
106 cm |
Photos
Ford YT-14 9809209
