Ford-New Holland 4230

The Ford-New Holland 4230 is a tractor produced by Ford New Holland. It is equipped with a 220.5 ci 3.6 L engine. Transmission: 12 forward and reverse. Operating weight: 4871 to 5290 pounds.

Overview

	1992 - 1997 Orchard/Vineyard tractorFiat built
1992 - 1997
Orchard/Vineyard tractor
Fiat built

1992 - 1997
Orchard/Vineyard tractor
Fiat built

Note: the Ford-New Holland model 4230 is the same as the Ford 4230. The following data is from the 4230 listing.

Production
Distributor	Ford-New Holland
Manufacturer	Fiat
Orchard/Vineyard tractor
Original price was $25,000 in 1997

Variants
4230N	narrow

Ford-New Holland 4230 Engine
Fiat 3.6L 4-cyl diesel
Engine details ...

Ford-New Holland 4230 Power
PTO (claimed)	62 hp 46.2 kW

Mechanical
Two- or four-wheel drive
Final drives	inboard planetary
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post mid-mount ROPS. Cab optional with air-conditioning.

Capacity
Fuel	13.7 gal 51.9 L
Hydraulic system	11.3 gal 42.8 L

Hydraulics
Type	open center
Capacity	11.3 gal 42.8 L
Pressure	2740 psi 188.9 bar
Valves	2 or 3
Pump flow	11 gpm 41.6 lpm
Steering flow	8.1 gpm 30.7 lpm
Steering press.	1450 psi 100.0 bar

Tractor hitch
Rear Type	II
Control	position control and lower-link draft sensing
Rear lift	5931 lbs 2690 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	78.8 inches 200 cm
4WD Wheelbase	83.1 inches 211 cm
Weight	4871 to 5290 pounds
Front tire	27x9.50-15
2WD Rear tire	14.9x24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	33
Cab Charging amps	65
Battery volts	12

Engine

	1992 - 1997 Orchard/Vineyard tractorFiat built
1992 - 1997
Orchard/Vineyard tractor
Fiat built

1992 - 1997
Orchard/Vineyard tractor
Fiat built

Note: the Ford-New Holland model 4230 is the same as the Ford 4230. The following data is from the 4230 listing.

Engine Detail — 220.5 ci / 3.6 L Diesel

Manufacturer	Fiat
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	220.5 ci 3.6 L
Bore/Stroke	3.937x4.527 inches 100 x 115 mm
Pre-heating	thermostart
Rated RPM	2500
Starter volts	12

Transmission

	1992 - 1997 Orchard/Vineyard tractorFiat built
1992 - 1997
Orchard/Vineyard tractor
Fiat built

1992 - 1997
Orchard/Vineyard tractor
Fiat built

Note: the Ford-New Holland model 4230 is the same as the Ford 4230. The following data is from the 4230 listing.

Transmission options
12-speed gear
12-speed shuttle

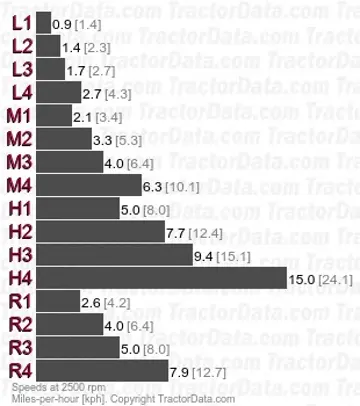

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
With 14.9-24 rear tires.

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse

Dimensions

	1992 - 1997 Orchard/Vineyard tractorFiat built
1992 - 1997
Orchard/Vineyard tractor
Fiat built

1992 - 1997
Orchard/Vineyard tractor
Fiat built

Note: the Ford-New Holland model 4230 is the same as the Ford 4230. The following data is from the 4230 listing.

Ford-New Holland 4230 Tires
2WD Standard tires (ag)	Front: 27x9.50-15. Rear: 14.9x24
4WD Standard tires (ag)	Front: 9.5-16. Rear: 14.9x24

Dimensions
2WD Wheelbase	78.8 inches 200 cm
4WD Wheelbase	83.1 inches 211 cm
2WD Length	138.5 inches 351 cm
4WD Length	144.5 inches 367 cm
2WD Width	57.5 inches 146 cm
4WD Width	58.5 inches 148 cm
2WD Weight	4871 lbs 2209 kg
4WD Weight	5290 lbs 2399 kg
4WD Clearance (front axle)	15.4 inches 39 cm
4WD Clearance (front axle)	15.5 inches 39 cm
2WD Front tread	46 to 58 inches 116 to 147 cm
4WD Front tread	47 to 53 inches 119 to 134 cm
Rear tread	42 to 57 inches 106 to 144 cm

Ford-New Holland 4230 Height
2WD Steering wheel	52.8 inches 134 cm
4WD Steering wheel	54.5 inches 138 cm
2WD Hood	48.5 inches 123 cm
4WD Hood	50.2 inches 127 cm
2WD ROPS	83.4 inches 211 cm
4WD ROPS	85 inches 215 cm
