Ford-New Holland 8630

1990 - 1993

Row-Crop tractor

Manufacturer

Ford-New Holland

Row-Crop tractor

Built in Antwerp, Belgium

Original price was $52,500 in 1993

Ford 6.6L 6-cyl diesel

PTO (claimed)

121 hp 90.2 kW

Drawbar (tested)

105.76 hp 78.9 kW

PTO (tested)

121.25 hp 90.4 kW

Two- or four-wheel drive

Power steering

Power disc brakes

optional cab with heat and A/C

Fuel

33 gal 124.9 L

24.5 gal (auxiliary tank) 92.7 L

Steering

2 qts 1.9 L

Type

open center

Pressure

2500 psi 172.4 bar

Pump flow

20 gpm 75.7 lpm

28.6 gpm (dual pumps) 108.3 lpm

SCV flow

16.9 gpm 64.0 lpm

19 gpm (dual pumps) 71.9 lpm

Steering cap.

2 qts 1.9 L

Steering press.

2025 psi 139.6 bar

Rear Type

3/2

Control

position and draft control

Rear PTO

independent

Rear PTO Type

540/1000

Wheelbase

105 inches 266 cm

Weight

11435 to 13960 pounds

Front tire

11.00-16

Rear tire

18.4/15-38

Charging system

alternator

Charging amps

90

Battery volts

12

Manufacturer

Ford

Configuration

turbocharged diesel, 6-cylinder, liquid-cooled

Displacement

401 ci 6.6 L

Bore/Stroke

4.40x4.40 inches 112 x 112 mm

Compression

15.6:1

Rated RPM

2200

Firing order

1-5-3-6-2-4

Coolant capacity

22 qts 20.8 L

23.6 qts (with heater) 22.3 L

Intake valve clearance

0.014-0.016 inches (cold) 0.356 mm

Exhaust valve clearance

0.017-0.019 inches (cold) 0.432 mm

Oil capacity

19.6 qts 18.5 L

18-speed

16-speed

8-speed

Transmission

Funk Ultra Command

Gears

18 forward and 9 reverse

Oil capacity

100.4 qts 95.0 L

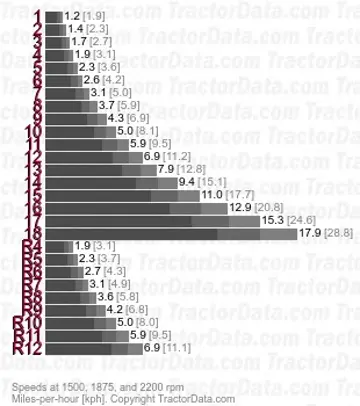

The Ford Ultra Command Powershift allows on-the-move shifting between gears, and shuttle shifting, without a clutch. A single lever controls the transmission; moving it to the left shifts down, to the right shifts up. Pushing forward increases forward throttle while pulling it back moves the tractor in reverse. An inching pedal is used for precise movements.

18.4/15-38 rear tires.

Transmission

Dual Power - constant mesh

Gears

16 forward and 4 reverse

Oil capacity

80 qts (2WD) 75.7 L

85.5 qts (4WD) 80.9 L

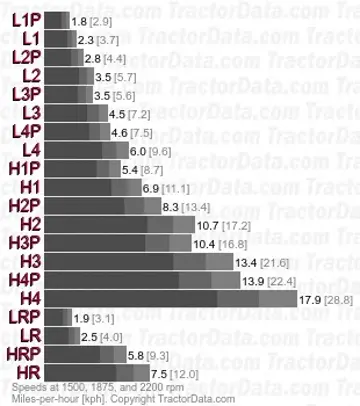

The Dual Power transmission provides a 'Powerdrive' low range to the basic constant mesh transmission. A foot switch next to the clutch is used to engage and disengage the mode, and may be switched while the tractor is in motion. A "rabbit" or "turtle" display light on the instrument panel indicates which mode the transmission is selected.

18.4/15-38 rear tires.

Transmission

Constant mesh

Gears

8 forward and 2 reverse

Oil capacity

72.8 qts (2WD) 68.9 L

87.3 qts (4WD) 82.6 L

Tranmission is operated with two levers and the clutch pedal. Left lever selects high, low, or the optional creeper range. Right lever selects one of four forward gears, or reverse. Tractor must be stopped to make gear or range changes.

18.4/15-38 rear tires.

Ag front

11.00-16 (2WD)

14.9/13-28 (4WD)

Ag rear

18.4/15-38

Wheelbase

105 inches 266 cm

Length

172 inches 436 cm

Width

82 inches 208 cm

Ground clearance

16.4 inches 41 cm

11,435 lbs (2WD) 5186 kg

12,035 lbs (2WD cab) 5459 kg

12,640 lbs (4WD) 5733 kg

13,240 lbs (4WD cab) 6005 kg

13,960 lbs (4WD cab Powershift) 6332 kg

ROPS

115 inches 292 cm

Cab

113.8 inches 289 cm

Exhaust

124.6 inches 316 cm

Diesel 16-speed 4WD September 10 - 18, 1984 Link: Nebraska Tractor Test 1536 file

PTO performance

Power at rated engine speed

121.25 hp 90.4 kW

Fuel use

7.6 gal/hour 28.8 l/hour

Power at rated PTO speed

115.58 hp 86.2 kW

Fuel use

1.0 gal/hour 3.8 l/hour

Drawbar performance

Max power

105.76 hp 78.9 kW

Fuel use

7.6 gal/hour 28.8 l/hour

Gear 5L used for power test.

Max pull

15,939 lbs 7229 kg

Gear 1H used for pull test.
