Ford-New Holland 8210

The Ford-New Holland 8210 is a tractor produced by Ford New Holland. It is equipped with a 401 ci 6.6 L engine. The rated power output is 110 hp 82.0 kW. Transmission: Dual Power. Operating weight: 8730 to 9370 pounds.

Overview

	1985 - 1991 Row-Crop tractor
1985 - 1991
Row-Crop tractor

Note: the Ford-New Holland model 8210 is the same as the Ford 8210. The following data is from the 8210 listing.

Production
Manufacturer	Ford-New Holland
Row-Crop tractor
Original price was $49,000 in 1991

Ford-New Holland 8210 Engine
Ford 6.6L 6-cyl diesel
Fuel tank	47 gal 177.9 L
Engine details ...

Ford-New Holland 8210 Transmission
16-speed two-speed power shift
Transmission details ...

Ford-New Holland 8210 Power
Engine (gross)	115 hp 85.8 kW
Engine (net)	110 hp 82.0 kW
PTO (claimed)	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Cab standard with air-conditioning. Optional AM/FM radio.

Hydraulics
Type	open center
Valves	2 to 4
SCV flow	18.2 gpm 68.9 lpm

Tractor hitch
Rear Type	II
Control	position control and top-link draft sensing
Rear lift (at 24"/610mm)	4435 lbs 2011 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1902
	1000@2049

Dimensions & Tires
Wheelbase	109.6 inches 278 cm
Weight	8730 to 9370 pounds
Front tire	14.9-24
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	72
Battery volts	12
Battery AH	128

Engine

Note: the Ford-New Holland model 8210 is the same as the Ford 8210. The following data is from the 8210 listing.

Engine Detail — 401 ci / 6.6 L Diesel

Manufacturer	Ford
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	401 ci 6.6 L
Bore/Stroke	4.40x4.40 inches 112 x 112 mm
Power (net)	110 hp 82.0 kW
Power (gross)	115 hp 85.8 kW
Air cleaner	dual dry element
Pre-heating	thermostart
Compression	16.3:1
Rated RPM	2300
Starter volts	12
Oil capacity	20 qts 18.9 L
Coolant capacity	22.5 qts 21.3 L

Transmission

Note: the Ford-New Holland model 8210 is the same as the Ford 8210. The following data is from the 8210 listing.

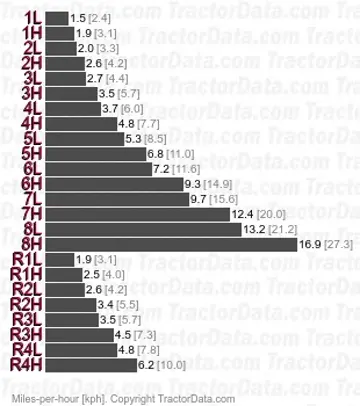

Transmission — Dual Power

Transmission	Dual Power
Type	two-speed power shift
Gears	16 forward and 8 reverse
Clutch	330mm dry disc
Oil capacity	60 qts 56.8 L

Dimensions

Note: the Ford-New Holland model 8210 is the same as the Ford 8210. The following data is from the 8210 listing.

Ford-New Holland 8210 Tires
Ag front	14.9-24
Ag rear	18.4-34
Ag front	14.9-28
Ag rear	18.4-38
	16.9-38

Dimensions
Wheelbase	109.6 inches 278 cm
Length	176.6 inches 448 cm
2WD Weight	8730 lbs 3959 kg
4WD Weight	9370 lbs 4250 kg
Clearance (front axle)	19.6 inches 49 cm
Front tread	60 to 79 inches 152 to 200 cm
Rear tread	60 to 80 inches 152 to 203 cm

Ford-New Holland 8210 Height
Steering wheel	86.3 inches 219 cm
Cab	114 inches 289 cm
Exhaust	119.6 inches 303 cm

Attachments

Note: the Ford-New Holland model 8210 is the same as the Ford 8210. The following data is from the 8210 listing.
