TractorData Logo
TractorData

fordson fordson n

OverviewEngineTransmissionDimensionsTestsPhotos
Fordson Fordson N tractor photo
1929 - 1945 Standard-tread tractor
1929 - 1945
Standard-tread tractor
1929 - 1945
Standard-tread tractor
1929 - 1945
Standard-tread tractor
Tractor Tests
NTTL 173: kerosene 3-speed 2WD
NTTL 174: gasoline 3-speed 2WD
Nebraska Tractor Test 173

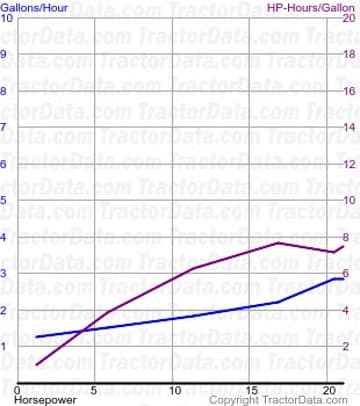

Fordson N fuel use from test 173
Fordson N fuel use from test 173
Fordson N fuel use from test 173
Fordson N fuel use from test 173
Nebraska Tractor Test 173
Kerosene 3-speed 2WD March 11 - April 8, 1930 Link: Nebraska Tractor Test 173 file
Belt power (max)
23.24 hp 17.3 kW
Belt fuel use (max)
3.3 gal/hour 12.5 l/hour
Drawbar performance
Max power
13.60 hp 10.1 kW
Gear 1 used for power test.
Max pull
3,289 lbs 1491 kg
Gear 1 used for pull test.
Nebraska Tractor Test 174

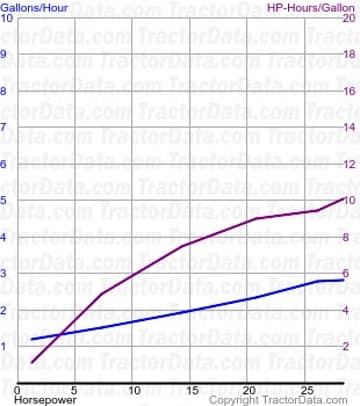

Fordson N fuel use from test 174
Fordson N fuel use from test 174
Fordson N fuel use from test 174
Fordson N fuel use from test 174
Nebraska Tractor Test 174
Gasoline 3-speed 2WD March 20 - April 10, 1930 Link: Nebraska Tractor Test 174 file
Belt power (max)
29.09 hp 21.7 kW
Belt fuel use (max)
3.1 gal/hour 11.7 l/hour
Drawbar performance
Max power
18.30 hp 13.6 kW
Gear 2 used for power test.
Max pull
3,202 lbs 1452 kg
Gear 1 used for pull test.
