fordson major
 | 1945 - 1952 | 1945 - 1952 |
|---|---|---|
1945 - 1952 | ||
1945 - 1952 |
|---|
Engine options | |
|---|---|
Ford 4.4L 4-cyl gasoline | |
Perkins 4.7L 6-cyl diesel |
Engine Detail | |
|---|---|
Ford | |
gasoline | |
4-cylinder | |
liquid-cooled | |
The E27N Major was available with high-compression heads for running on petrol, or low-compression heads for using TVO. TVO tractors had an auxiliary petrol fuel tank for starting. | |
Displacement | 267 ci
4.4 L |
Bore/Stroke | 4.125x5.00 inches
105 x 127 mm |
Power | 27 hp
20.1 kW |
Rated RPM | 1200 |
Firing order | 1-2-4-3 |
Starter volts | 12 |
Coolant capacity | 48.1 qts
45.5 L |

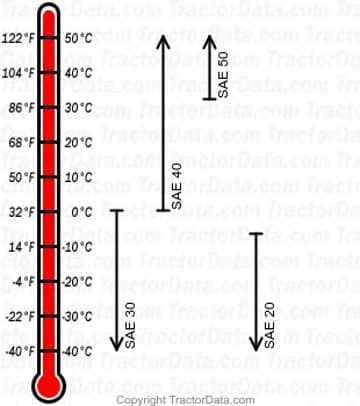

Engine Oil | |
|---|---|
 | |
Oil capacity | 12.6 qts
11.9 L |
Engine Detail | |
|---|---|
Perkins | |
diesel | |
6-cylinder | |
liquid-cooled | |
Tractors with the diesel are known as E27N P6(TA). | |
Displacement | 288 ci
4.7 L |
Bore/Stroke | 3.50x5.00 inches
89 x 127 mm |
Power | 45 hp
33.6 kW |
Rated RPM | 1500 |
