Fortschritt GT 124

The Fortschritt GT 124 is a tractor produced by Fortschritt. It is equipped with a 100 ci 1.6 L engine. The listed engine power is Diesel (listed): 24 hp / 17.9 kW. Transmission: 8 forward and reverse. Operating weight: 3527 lbs 1599 kg.

Engine Power

Diesel (listed): 24 hp / 17.9 kW

Fuel & Capacities

Diesel

Transmission

8 forward and reverse

Operating Weight

3527 lbs 1599 kg

Overview

	1964 - 1972 Tool Carrier tractor

Production
Manufacturer	Fortschritt
Tool Carrier tractor
Built in Schönebeck, Saxony-Anhalt, Germany

Fortschritt GT 124 Engine
Motorenwrok Cunewalde 1.6L 4-cyl diesel
Engine details ...

Fortschritt GT 124 Transmission
8-speed
Transmission details ...

Fortschritt GT 124 Power
Engine	24 hp 17.9 kW

Mechanical
Two-wheel drive
Manual steering
Four-post ROPS.

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Weight	3527 lbs 1599 kg
Front tire	6.00-16
Rear tire	8.3-36
Full dimensions and tires ...

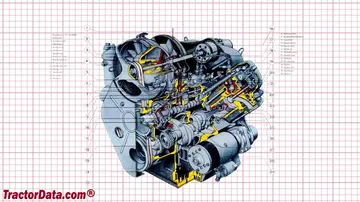

Engine

Engine Detail — 100 ci / 1.6 L Diesel

Fuel Type	Diesel
Configuration	4-cylinder, air-cooled V-4
Motorenwrok Cunewalde 4 VD 8/8
Displacement	100 ci 1.6 L
Bore/Stroke	3.15x3.15 inches 80 x 80 mm
Power	24 hp 17.9 kW
Rated RPM	3000
Starter volts	12

Fortschritt GT 124 Engine

Transmission

Transmission — 8 forward and reverse

Gears	8 forward and reverse
Clutch	dry disc

Dimensions

Fortschritt GT 124 Tires
Ag front	6.00-16
Ag rear	8.3-36

Dimensions
Length	138.6 inches 352 cm
Width	59.8 inches 151 cm
Height	72.6 inches 184 cm
Weight	3527 lbs 1599 kg

Photos

Fortschritt GT124 tool-carrying tractor.

Recommended Implements & Sizing Guide

Engineering recommendations for Fortschritt GT 124 based on its 24 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Fortschritt GT 124.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
