Kubota T22

The Kubota T22 is a tractor produced by Kubota. It is equipped with a 85 ci 1.4 L engine. The rated power output is 21.6 hp 16.1 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1940 to 2028 pounds.

Overview

	1999 Compact Utility tractor
1999
Compact Utility tractor

Production
Manufacturer	Kubota
Compact Utility tractor

Variants
T22	gear
T22F	hydrostatic

Kubota T22 Engine
Kubota 1.4L 3-cyl diesel
Fuel tank	7.4 gal 28.0 L
Engine details ...

Kubota T22 Power
Engine	21.6 hp 16.1 kW

Mechanical
Four-wheel drive
Two-post folding ROPS.

Tractor hitch
Rear Type	JIS-1

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	554@2600
	802@2600
	1182@2600
	-547@2600

Dimensions & Tires
Wheelbase	57.1 inches 145 cm
Weight	1940 to 2028 pounds
Front tire	6-14
Rear tire	8.3-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
T22 (T0411-1920-1) published in 1999

Engine

Engine Detail — 85 ci / 1.4 L Diesel

Manufacturer	Kubota D1403
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	85 ci 1.4 L
Bore/Stroke	3.1x3.6 inches 79 x 91 mm
Power	21.6 hp 16.1 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Transmission options
12-speed gear
hydrostatic

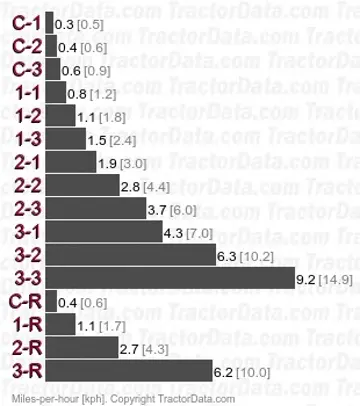

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
With 8.3-24 rear tires.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
With 8.3-24 rear tires.

Dimensions

Kubota T22 Tires
Standard tires (ag)	Front: 6-14. Rear: 8.3-24

Dimensions
Wheelbase	57.1 inches 145 cm
Length	110.4 inches 280 cm
Width	45.3 inches 115 cm
Height	74.6 inches 189 cm
Gear Weight	1940 lbs 879 kg
Hydro Weight	2028 lbs 919 kg
Ground clearance	12.6 inches 32 cm
Front tread	37.4 inches 94 cm
Rear tread	36/40.8 inches 91/103 cm

Photos

Kubota T22 tractor photo
