Foton 354
The Foton 354 is a tractor produced by Foton. It is equipped with a 136.1 ci 2.2 L engine. The listed engine power is Diesel (listed): 34.5 hp / 25.7 kW. Transmission: 8 forward and reverse. Operating weight: 3968 lbs 1799 kg.
Engine Power
Diesel (listed): 34.5 hp / 25.7 kW
Fuel & Capacities
7.7 gal
29.1 L
Transmission
8 forward and reverse
Operating Weight
3968 lbs
1799 kg
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Foton |
Variants | |
|---|---|
350 | 2WD |
354 | 4WD |
Foton 354 Engine | |
|---|---|
2.2L 3-cyl diesel | |
Engine details ...  |
Foton 354 Transmission | |
|---|---|
8-speed | |
Transmission details ...  |
Foton 354 Power | |
|---|---|
Engine | 34.5 hp
25.7 kW |
PTO (claimed) | 32.1 hp
23.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Wet disc brakes | |
Two-post foldable ROPS. Cab optional. |
Capacity | |
|---|---|
Fuel | 7.7 gal
29.1 L |
Hydraulic system | 2.7 gal
10.2 L |
Hydraulics | |
|---|---|
Capacity | 2.7 gal
10.2 L |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at 24"/610mm) | 1,304 lbs
591 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 74 inches
187 cm |
Weight | 3968 lbs
1799 kg |
Front tire | 7.50-16 |
Rear tire | 11.2-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 136.1 ci / 2.2 L Diesel
Manufacturer | TY395T |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 136.1 ci
2.2 L |
Bore/Stroke | 3.74x4.134 inches
95 x 105 mm |
Power | 34.5 hp
25.7 kW |
Compression | 18:1 |
Rated RPM | 2400 |
Torque | 87 lb-ft
118.0 Nm |
Torque RPM | 1725 |
Starter volts | 12 |
Oil capacity | 7.4 qts
7.0 L |
Coolant capacity | 8.9 qts
8.4 L |
Transmission
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Transmission — 8 forward and reverse
Gears | 8 forward and reverse |
Dimensions
Foton 354 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 11.2-28 |
Dimensions | |
|---|---|
Wheelbase | 74 inches
187 cm |
Length | 138.3 inches
351 cm |
Width | 65 inches
165 cm |
Height | 82.9 inches
210 cm |
Weight | 3968 lbs
1799 kg |
Ground clearance | 11.8 inches
29 cm |
Photos

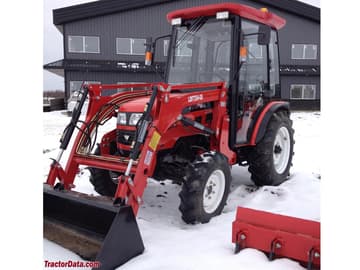

Foton 354 with cab and front-end loader.
Recommended Implements & Sizing Guide
Engineering recommendations for Foton 354 based on its 34.5 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Foton 354.
Estimated Continuous Field Runtime: 4.3 hrs
Approximately 4.3 hours of continuous field operation at ~75% rated power on a full tank (7.7 gal / 29.1 L).
Estimated 75% Load Fuel Burn~1.8 gal/hr (6.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Foton 354 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Foton 354.
Converted Equivalents:
Horsepower (HP)34.5 hp
Kilowatts (kW)25.7 kW
Metric Horsepower (PS / CV)35 PS
Direct Competitor Comparison
Compare Foton 354 against same-era industry alternatives in the same horsepower class.
Current Model
Foton
Foton 354
Engine Power:Diesel (listed): 34.5 hp / 25.7 kW
★ Baseline Reference
General OrdnanceMarket Competitor
General Ordnance 14-28
Engine Power:31.1
Production Years:1919 - 1920
