Twin City 17-28
The Twin City 17-28 is a tractor produced by Twin City. It is equipped with a 340.5 ci 5.6 L engine. The rated power output is 30.91 hp 23.0 kW. Transmission: 2 forward and 1 reverse. Operating weight: 5350 lbs 2426 kg.
Engine Power
30.91 hp
23.0 kW
Fuel & Capacities
30 gal
113.6 L
Transmission
2 forward and 1 reverse
Operating Weight
5350 lbs
2426 kg
Twin City 17-28 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1926 - 1935
Standard-tread tractor |
|---|---|
1926 - 1935 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Twin City |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 15,000 |
Variants | |
|---|---|
17-28 | farm tractor |
Road Chief | industrial tractor |
Twin City 17-28 Engine | |
|---|---|
Twin-City 5.6L 4-cyl kerosene | |
Fuel tank | 30 gal
113.6 L |
Aux. fuel | 1 gal
3.8 L |
Engine details ...  | |
Twin City 17-28 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Twin City 17-28 Power | |
|---|---|
Drawbar (claimed) | 17 hp
12.7 kW |
Belt (claimed) | 28 hp
20.9 kW |
Plows | 3 (14-inch) |
Drawbar (tested) | 22.505 hp
16.8 kW |
Belt (tested) | 30.91 hp
23.0 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical contracting band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 84 inches
213 cm |
Weight | 4600 to 5350 pounds |
Front tire | 34x5.75 |
Rear tire | 50x12 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16 inches
40 cm |
Width | 7.5 inches
19 cm |
RPM | 650 |
Speed | 2720 ft/min
829.06 meters/min |
References | |
|---|---|
 | |
General Catalog No. 31 published in 1930, by Minneapolis-Moline |
Engine
Engine Detail — 340.5 ci / 5.6 L Kerosene
Manufacturer | Twin-City |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 340.5 ci
5.6 L |
Bore/Stroke | 4.25x6.00 inches
108 x 152 mm |
Air cleaner | dry |
Rated RPM | 1000 |
Starter type | hand-crank |
Coolant capacity | 42 qts
39.7 L |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Twin City 17-28 Tires | |
|---|---|
Ag front | 34x5.75 (steel) |
Ag rear | 50x12 (steel) |
Ag front | 30x5.75 (steel orchard) |
Ag rear | 42x12 (steel orchard) |
Dimensions | |
|---|---|
Wheelbase | 84 inches
213 cm |
Length | 134 inches
340 cm |
Orchard Length | 139.5 inches
354 cm |
Width | 66 inches
167 cm |
Orchard Width | 57.5 inches
146 cm |
Height | 66 inches
167 cm |
Orchard Height | 59 inches
149 cm |
Weight | 5350 lbs
2426 kg |
Orchard Shipping weight | 4600 lbs
2086 kg |
Orchard Ground clearance | 6 inches
15 cm |
Front tread | 39 inches
99 cm (orchard) |
Rear tread | 27.25 inches
69 cm (orchard) |
Tests
Nebraska Tractor Test 121 | |
|---|---|
Kerosene 2-speed 2WD
May 17 - 21, 1926
Link: Nebraska Tractor Test 121 file | |
Belt power (max) | 30.91 hp
23.0 kW |
Belt fuel use (max) | 3.2 gal/hour
12.1 l/hour |
Drawbar performance | |
Max power | 22.505 hp
16.8 kW |
Max pull | 3777.5 lbs
1713 kg |
Photos

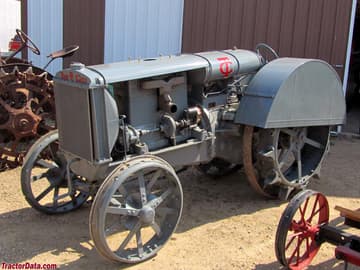

Twin City 17-28 Orchard tractor.
