Gilson 52105 YT16HE

The Gilson 52105 YT16HE is a tractor produced by Gilson Lawn Tractors. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Eaton. Operating weight: 578 lbs 262 kg.

Engine Power

Gasoline (listed): 16 hp / 11.9 kW

Fuel & Capacities

2 gal 7.6 L

Transmission

Eaton

Operating Weight

578 lbs 262 kg

Overview

	1985 - 1986 Yard SeriesGarden tractor Yard Series Garden tractor

Production
Manufacturer	Gilson
Garden tractor

Gilson 52105 Engine
16HP Briggs & Stratton 2-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Gilson 52105 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station. ECAM 2000

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Weight	578 lbs 262 kg
Front tire	15x6.00-6
Rear tire	22x9.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

Tractors - Rear Engine Riders - Tillers - Mowers published in 1985, by Gilson
Tractors - Riders - Tillers - Mowers - Snowthrowers published in 1985, by Gilson

Engine

Engine Detail — Gasoline

Manufacturer	Briggs & Stratton
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Power	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Eaton

Transmission	Eaton
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Gilson 52105 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	22x9.50

Dimensions
Weight	578 lbs 262 kg

Attachments

Attachment overview
42" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

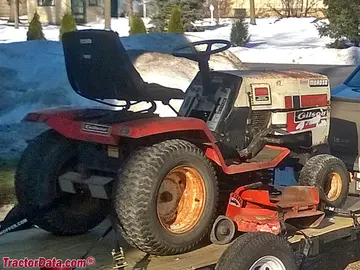

Gilson 52105 YT16HE

Recommended Implements & Sizing Guide

Engineering recommendations for Gilson Lawn Tractors Gilson 52105 YT16HE based on its 16 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Gilson Lawn Tractors Gilson 52105 YT16HE.

Estimated Continuous Field Runtime: 2.4 hrs

Approximately 2.4 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Gilson Lawn Tractors Gilson 52105 YT16HE Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Gilson Lawn Tractors Gilson 52105 YT16HE.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)16 hp

Kilowatts (kW)11.9 kW

Metric Horsepower (PS / CV)16.2 PS
