gravely lawn tractors 810
![]() | 1973 - 1978
800 SeriesGarden tractor | 1973 - 1978 | 800 Series | Garden tractor |
|---|---|---|---|---|
1973 - 1978 | ||||
800 Series | ||||
Garden tractor | ||||
1973 - 1978 | |
|---|---|
800 Series | |
Garden tractor |
Engine Detail | |
|---|---|
Kohler K241 | |
gasoline | |
1-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 391 cc
23.9 ci |
Bore/Stroke | 3.25x2.88 inches
83 x 73 mm |
Power | 10 hp
7.5 kW |
Air cleaner | dry |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.025 inches
0.635 mm |
Intake valve clearance | 0.009 inches
0.229 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |

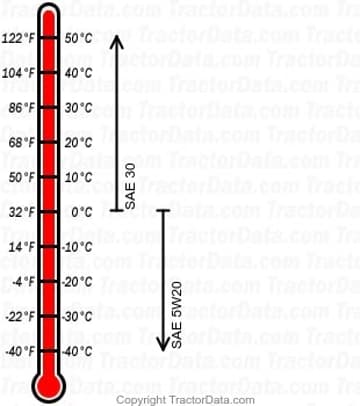

Engine Oil | |
|---|---|
![]() | |
Oil capacity | 2.5 qts
2.4 L |
