gravely lawn tractors 812

Gravely 812 tractor photo
1973 - 1978 800 SeriesGarden tractor
1973 - 1978
800 Series
Garden tractor
1973 - 1978
800 Series
Garden tractor
1973 - 1978
800 Series
Garden tractor
Engine Detail
Kohler K301
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement
476 cc 29.07 ci
Bore/Stroke
3.25x3.37 inches 83 x 86 mm
Power
12 hp 8.9 kW
Rated RPM
3600
Starter
electric
Starter volts
12
Sparkplug gap
0.025 inches 0.635 mm
Intake valve clearance
0.009 inches 0.229 mm
Exhaust valve clearance
0.018 inches 0.457 mm
Engine Oil

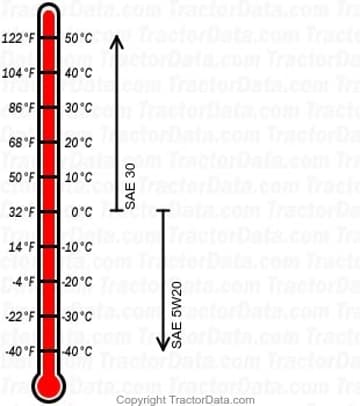

812 gasoline engine oil chart
Oil capacity
2.5 qts 2.4 L
