gravely lawn tractors gmt 9000
 | 1977 - 1982
Garden tractor | 1977 - 1982 | Garden tractor |
|---|---|---|---|
1977 - 1982 | |||
Garden tractor | |||
1977 - 1982 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Continental R800-46 | |
gasoline | |
4-cylinder | |
liquid-cooled | |
Displacement | 845 cc
51.6 ci |
Bore/Stroke | 2.28x3.14 inches
58 x 80 mm |
Power | 26 hp
19.4 kW |
Compression | 8:1 |
Rated RPM | 4000 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Sparkplug gap | 0.025 inches
0.635 mm |
Point gap | 0.018 inches
0.457 mm |
Intake valve clearance | 0.005 inches (cold)
0.127 mm |
Exhaust valve clearance | 0.008 inches (cold)
0.203 mm |

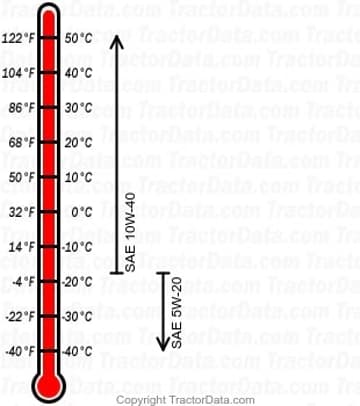

Engine Oil | |
|---|---|
 | |
Oil capacity | 3.25 qts
3.1 L |
