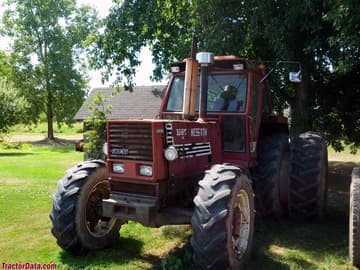

Hesston 1580
The Hesston 1580 is a tractor produced by Hesston. It is equipped with a 494 ci 8.1 L engine. The rated power output is 141.44 hp 105.5 kW. Transmission: 12 forward and reverse. Operating weight: 13350 to 15200 pounds.
Engine Power
141.44 hp
105.5 kW
Fuel & Capacities
74 gal
280.1 L
Transmission
12 forward and reverse
Operating Weight
13,350 lbs
6055 kg
Hesston 1580 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1981 - 1984
80 SeriesRow-Crop tractor |
|---|---|
1981 - 1984 | |
80 Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Hesston (a part of Fiat) |
Row-Crop tractor | |
Original price was $50,000 in 1984 | |
Variants | |
|---|---|
1580DT | 4WD |
Hesston 1580 Engine | |
|---|---|
Fiat 8.1L 6-cyl diesel | |
Fuel tank | 74 gal
280.1 L |
Engine details ...  | |
Hesston 1580 Power | |
|---|---|
Drawbar (claimed) | 124 hp
92.5 kW |
PTO (claimed) | 138 hp
102.9 kW |
Drawbar (tested) | 123.05 hp
91.8 kW |
PTO (tested) | 141.44 hp
105.5 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | hydrostatic power |
Hydraulic disc brakes | |
Supercomfort cab standard with air conditioning | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2450 psi
168.9 bar |
Valves | 3 |
Pump flow | 14.7 gpm
55.6 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
IIIN optional | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 116.8 inches (2WD)
296 cm |
113.5 inches (4WD)
288 cm | |
Weight | 13350 to 15200 pounds |
Front tire | 11.00-16 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 65 |
Engine
Engine Detail — 494 ci / 8.1 L Diesel
Manufacturer | Fiat 8365-05 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 494 ci
8.1 L |
Bore/Stroke | 4.528x5.118 inches
115 x 130 mm |
Compression | 15.5:1 |
Rated RPM | 2200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed | |
24-speed |
Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Clutch | hydraulic dry disc |
Four gears (1-4) in three ranges (L, M, H). | |
 | |
Transmission — 24 forward and 8 reverse
Gears | 24 forward and 8 reverse |
Transmission — 12 forward and reverse
Gears | 12 forward and reverse |
Dimensions
Hesston 1580 Tires | |
|---|---|
Ag front | 11.00-16 (2WD) |
14.9-28 (4WD) | |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Wheelbase | 116.8 inches (2WD)
296 cm |
113.5 inches (4WD)
288 cm | |
2WD Length | 170.3 inches
432 cm |
4WD Length | 174.8 inches
443 cm |
2WD Operating weight | 13,350 lbs
6055 kg |
4WD Operating weight | 15,200 lbs
6894 kg |
Hesston 1580 Height | |
|---|---|
2WD Hood | 72.3 inches
183 cm |
4WD Hood | 71.8 inches
182 cm |
Cab | 112.25 inches
285 cm |
Tests
Nebraska Tractor Test 1451 | |
|---|---|
Diesel 12-speed 4WD
September 13 - 23, 1982
Link: Nebraska Tractor Test 1451 file | |
PTO performance | |
Power at rated engine speed | 141.44 hp
105.5 kW |
Fuel use | 8.4 gal/hour
31.8 l/hour |
Power at rated PTO speed | 136.14 hp
101.5 kW |
Fuel use | 7.9 gal/hour
29.9 l/hour |
Drawbar performance | |
Max power | 123.05 hp
91.8 kW |
Fuel use | 8.3 gal/hour
31.4 l/hour |
Max pull | 15342 lbs
6959 kg |
