CaseIH Vestrum 130

The CaseIH Vestrum 130 is a tractor produced by Caseih. It is equipped with a 273.7 ci 4.5 L engine. The listed engine power is Diesel (gross): 128.2 hp / 95.6 kW. Transmission: ActiveDrive 8. Operating weight: 12900 lbs 5851 kg.

Engine Power

Diesel (gross): 128.2 hp / 95.6 kW

Fuel & Capacities

47.5 gal 179.8 L

Transmission

ActiveDrive 8

Operating Weight

12900 lbs 5851 kg

Overview

	2020 - Vestrum SeriesUtility tractor
2020 -
Vestrum Series
Utility tractor

Production
Manufacturer	CaseIH (a part of CNH)
Utility tractor
Original price	$117,744 (2020 ActiveDrive8 )
	$142,716 (2020 CVT )

Variants
T5.140	similar New Holland model

CaseIH Vestrum 130 Engine
FPT 4.5L 4-cyl diesel
Fuel tank	47.5 gal 179.8 L
Exhaust fluid (DEF)	5 gal 18.9 L
Engine details ...

CaseIH Vestrum 130 Power
Engine (gross)	128.2 hp 95.6 kW
Engine (max)	138.1 hp 103.0 kW
PTO (claimed)	111 hp 82.8 kW

Mechanical
Four-wheel drive
Final drives	inboard planetary
Differential lock	electro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center load-sensing
Pressure	2900 psi 200.0 bar
Rear valves	4 OptOptional
Mid valves	3 OptOptional
Pump flow	29.1 gpm 110.1 lpm

Tractor hitch
Rear Type	II
	IIIN OptOptional
Control	electronic lower-link draft sensing
Rear lift (at 24"/610mm)	9259 lbs 4199 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1969
	540E@1546
	1000@1893
Front PTO	independent OptOptional
Front PTO Type	1000 (1.375)

Dimensions & Tires
Wheelbase	98 inches 248 cm
Weight	12900 lbs 5851 kg
Front tire	380/85R24
Rear tire	460/85R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	200
Battery volts	12

References

Vestrum published in 2020, by CaseIH
Vestrum published in 2023, by CaseIH

Engine

Engine Detail — 273.7 ci / 4.5 L Diesel

Manufacturer	FPT
Configuration	turbocharged diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	273.7 ci 4.5 L
Bore/Stroke	4.094x5.197 inches 104 x 132 mm
Emissions	Tier IV
Emission control	selective catalytic reduction
Rated Power (gross)	128.2 hp 95.6 kW
Maximum Power (gross)	138.1 hp 103.0 kW
Fuel system	electronic high-pressure common-rail direct injection
Rated RPM	2200
Torque	464.6 lb-ft 630.0 Nm
Torque RPM	1300
Starter	electric
Starter volts	12

Transmission

Transmission options
continuously-variable transmission
24-speed 8-speed power shift

Transmission — CVXDrive

Transmission	CVXDrive
Type	continuously-variable transmission
Gears	infinite forward and reverse (2-range)

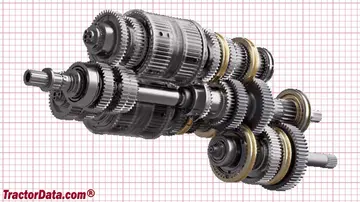

CaseIH Vestrum 130 Transmission

Transmission — ActiveDrive 8

Transmission	ActiveDrive 8
Type	8-speed power shift
Gears	24 forward and reverse

CaseIH Vestrum 130 Transmission

Dimensions

CaseIH Vestrum 130 Tires
Standard tires (ag)	Front: 380/85R24. Rear: 460/85R34
Optional tires (ag)	Front: 440/65R28. Rear: 540/65R38

Dimensions
Wheelbase	98 inches 248 cm
Length	188.4 inches 478 cm
Width	90 inches 228 cm
Height (cab)	111.6 inches 283 cm
Weight	12900 lbs 5851 kg
Max weight	19400 lbs 8799 kg
Flange rear axle

Photos

Case IH Vestrum 130.

Case IH Vestrum 130 with L103 front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for Caseih Vestrum 130 based on its 128.2 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Caseih Vestrum 130.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (47.5 gal / 179.8 L).

Estimated 75% Load Fuel Burn~6.7 gal/hr (25.2 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
