Hesston 466

The Hesston 466 is a tractor produced by Hesston. It is equipped with a 158 ci 2.6 L engine. The rated power output is 45.13 hp 33.7 kW. Transmission: 20 forward and 8 reverse. Operating weight: 4851 to 5720 pounds.

Engine Power
45.13 hp 33.7 kW
Fuel & Capacities
19.2 gal 72.7 L
Transmission
20 forward and 8 reverse
Operating Weight
4851 to 5720 pounds

Hesston 466 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

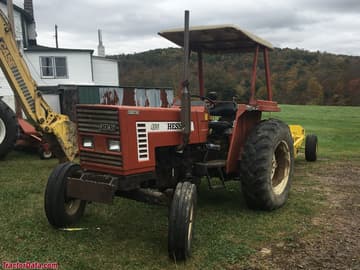

Hesston 466 tractor photo
1983 - 1984 Utility tractorFiat built
1983 - 1984
Utility tractor
Fiat built
1983 - 1984
Utility tractor
Fiat built
Production
Distributor
Hesston
Manufacturer
Fiat
Utility tractor
Built in Modena, Italy
Original price was $16,400 in 1984
Variants
466DT
4WD
Hesston 466 Engine
Fiat 2.6L 3-cyl diesel
Fuel tank
19.2 gal 72.7 L
Engine details ...
Hesston 466 Power
Drawbar (claimed)
40 hp 29.8 kW
PTO (claimed)
45 hp 33.6 kW
Drawbar (tested)
38.44 hp 28.7 kW
PTO (tested)
45.13 hp 33.7 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Power steering
Differential mechanical wet disc brakes
Four-post ROPS standard. Optional canopy.
Hydraulics
Type
open center
Pressure
2700 psi 186.2 bar
Valves
0 to 2
Pump flow
11 gpm 41.6 lpm
Tractor hitch
Rear Type
I/II
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540
Dimensions & Tires
2WD Wheelbase
85.6 inches 217 cm
4WD Wheelbase
83.4 inches 211 cm
Weight
4851 to 5720 pounds
Front tire
6.00-16
Rear tire
13.6-28
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
33

Engine

Hesston 466 tractor photo
1983 - 1984 Utility tractorFiat built
1983 - 1984
Utility tractor
Fiat built
1983 - 1984
Utility tractor
Fiat built

Engine Detail — 158 ci / 2.6 L Diesel

Manufacturer
Fiat 8035.02
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
158 ci 2.6 L
Bore/Stroke
3.94x4.33 inches 100 x 110 mm
Compression
17:1
Rated RPM
2600
Starter volts
12

Transmission

Hesston 466 tractor photo
1983 - 1984 Utility tractorFiat built
1983 - 1984
Utility tractor
Fiat built
1983 - 1984
Utility tractor
Fiat built
Transmission options
12-speed synchronized
12-speed
20-speed

Transmission — 12 forward and 4 reverse synchronized

Type
synchronized
Gears
12 forward and 4 reverse
Four synchronized gears in three ranges.

Transmission — 12 forward and reverse

Gears
12 forward and reverse

Transmission — 20 forward and 8 reverse

Gears
20 forward and 8 reverse

Dimensions

Hesston 466 tractor photo
1983 - 1984 Utility tractorFiat built
1983 - 1984
Utility tractor
Fiat built
1983 - 1984
Utility tractor
Fiat built
Hesston 466 Tires
2WD Ag front
6.00-16
4WD Ag front
9.5-24
2WD Ag rear
13.6-28
4WD Ag rear
16.9-28
Dimensions
2WD Wheelbase
85.6 inches 217 cm
4WD Wheelbase
83.4 inches 211 cm
2WD Length
130 inches 330 cm
4WD Length
133 inches 337 cm
2WD Clearance (front axle)
20 inches 50 cm
4WD Clearance (front axle)
17 inches 43 cm
Hesston 466 Weight
2WD Operating
4851 lbs 2200 kg
4WD Operating
5720 lbs 2594 kg
Ballasted
6670 lbs 3025 kg
Hesston 466 Height
2WD Hood
57 inches 144 cm
4WD Hood
58 inches 147 cm
Exhaust
94 inches 238 cm

Tests

Hesston 466 tractor photo
1983 - 1984 Utility tractorFiat built
1983 - 1984
Utility tractor
Fiat built
1983 - 1984
Utility tractor
Fiat built
Nebraska Tractor Test 1484
Diesel 12-speed 4WD June 9 - 22, 1983 Link: Nebraska Tractor Test 1484 file
PTO performance
Power at rated engine speed
45.13 hp 33.7 kW
Fuel use
2.9 gal/hour 11.0 l/hour
Power at rated PTO speed
42.68 hp 31.8 kW
Fuel use
2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power
38.44 hp 28.7 kW
Fuel use
2.9 gal/hour 11.0 l/hour
