Hesston H-140 GMT

The Hesston H-140 GMT is a tractor produced by Hesston Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Sundstrand. Operating weight: 800 lbs 362 kg.

Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
1.5 gal 5.7 L
Transmission
Sundstrand
Operating Weight
800 lbs 362 kg

Overview

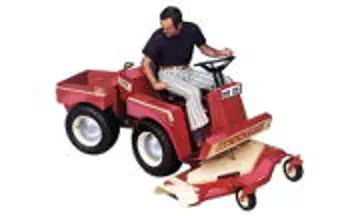

Hesston H-140 GMT tractor photo
1972 - 1976 Front Runner SeriesGarden tractor Front Runner Series Garden tractor
Production
Manufacturer
Hesston
Garden tractor
Built in Indianapolis, Indiana, USA
Original price was $1,785 in 1972
Hesston H-140 Engine
14HP Briggs & Stratton 531cc 1-cyl gasoline
Fuel tank
1.5 gal 5.7 L
Engine details ...
Hesston H-140 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual articulated steering
Mechanical disc brakes
Tractor hitch
Type
sleeve hitch
Rear lift
300 lbs*At 711mm behind the rear axle. 136 kg
Power Take-off (PTO)
Front PTO
independent
Clutch
electromagnetic
Dimensions & Tires
Wheelbase
38.5 inches 97 cm
Weight
800 lbs 362 kg
Front tire
23x8.50-12
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Charging system
generator
Charging amps
15
Battery volts
12
Battery AH
45
References
H-140 GMT references literature
Operator's Manual Front Runner GMT-TT-TW (FR-1-1075) published in 1975
Operator's Manual Front Runner GMT-TT-TW (F-5523) published in 1971

Engine

Engine Detail — 531 cc / 32.4 ci Gasoline

Manufacturer
Briggs & Stratton 325431
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
531 cc 32.4 ci
Bore/Stroke
3.56x3.25 inches 90 x 83 mm
Power
14 hp 10.4 kW
Starter
electric
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — Sundstrand

Transmission
Sundstrand
Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
5 qts 4.7 L
H-140 GMT hydrostatic speeds

Dimensions

Hesston H-140 Tires
Lawn/turf front
23x8.50-12
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
38.5 inches 97 cm
Length
84.25 inches 213 cm
Width
40 inches 101 cm
Height
45 inches 114 cm
Weight
800 lbs 362 kg
Front tread
31.5 inches 80 cm
Rear tread
31.5 inches 80 cm

Attachments

Attachment overview
48" front-mount mower deck
60" front-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Hesston H-140 GMT tractor photo

Hesston H-140 GMT tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Hesston Lawn Tractors Hesston H-140 GMT.

Estimated Continuous Field Runtime: 2.1 hrs

Approximately 2.1 hours of continuous field operation at ~75% rated power on a full tank (1.5 gal / 5.7 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Hesston Lawn Tractors Hesston H-140 GMT Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Hesston Lawn Tractors Hesston H-140 GMT.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
