Hesston H-160 GMT
The Hesston H-160 GMT is a tractor produced by Hesston Lawn Tractors. It is equipped with a 531 cc 32.4 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Sundstrand. Operating weight: 850 lbs 385 kg.
Engine Power
Gasoline (listed): 16 hp / 11.9 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
Sundstrand
Operating Weight
850 lbs
385 kg
Overview
 | 1972 - 1976
Front Runner SeriesGarden tractor
Front Runner Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Hesston |
Garden tractor | |
Built in Indianapolis, Indiana, USA | |
Variants | |
|---|---|
GMT | grounds maintenance tractor |
TW | three-wheeler |
TT | turf truck |
Hesston H-160 Engine | |
|---|---|
16HP Briggs & Stratton 531cc 1-cyl gasoline | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Hesston H-160 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual articulated |
Steering | articulated power OptOptional |
Mechanical disc brakes | |
Tractor hitch | |
|---|---|
Type | sleeve hitch |
Rear lift | 300 lbs*At 711mm behind the rear axle.
136 kg |
Power Take-off (PTO) | |
|---|---|
Front PTO | independent |
Clutch | mechanical disc |
Dimensions & Tires | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Weight | 850 lbs
385 kg |
Front tire | 23x10.50-12 |
Rear tire | 23x10.50-12 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 15 |
Battery volts | 12 |
Battery AH | 45 |
References | |
|---|---|
 | |
Operator's Manual Front Runner GMT-TT-TW (FR-1-1075) published in 1975 | |
Operator's Manual Front Runner GMT-TT-TW (F-5523) published in 1971 |
Engine
Engine Detail — 531 cc / 32.4 ci Gasoline
Manufacturer | Briggs & Stratton 326431 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 531 cc
32.4 ci |
Bore/Stroke | 3.56x3.25 inches
90 x 83 mm |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2 qts
1.9 L |
Transmission
Transmission — Sundstrand
Transmission | Sundstrand |
Type | hydrostatic |
Gears | infinite forward and reverse |
Oil capacity | 5 qts
4.7 L |
 | |
Dimensions
Hesston H-160 Tires | |
|---|---|
Lawn/turf front | 23x10.50-12 |
Lawn/turf rear | 23x10.50-12 |
Dimensions | |
|---|---|
Wheelbase | 41.5 inches
105 cm |
Length | 87.25 inches
221 cm |
Width | 44 inches
111 cm |
Height | 45 inches
114 cm |
Weight | 850 lbs
385 kg |
Front tread | 33.5 inches
85 cm |
Rear tread | 33.5 inches
85 cm |
Attachments
Attachment overview | |
|---|---|
48" front-mount mower deck | |
60" front-mount mower deck | |
80" front-mount mower deck | |
Snowblower | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

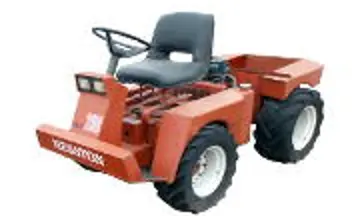

Hesston H-160 GMT tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Hesston Lawn Tractors Hesston H-160 GMT based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Hesston Lawn Tractors Hesston H-160 GMT.
Estimated Continuous Field Runtime: 4.8 hrs
Approximately 4.8 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Hesston Lawn Tractors Hesston H-160 GMT Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Hesston Lawn Tractors Hesston H-160 GMT.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Hesston H-160 GMT against same-era industry alternatives in the same horsepower class.
Current Model
Hesston Lawn Tractors
Hesston H-160 GMT
Engine Power:Gasoline (listed): 16 hp / 11.9 kW
★ Baseline Reference
