honda lawn tractors h1011
 | 1993 - 2000
Riding lawn mower | 1993 - 2000 | Riding lawn mower |
|---|---|---|---|
1993 - 2000 | |||
Riding lawn mower | |||
1993 - 2000 | |
|---|---|
Riding lawn mower |
Engine Detail | |
|---|---|
Honda GXV340K1 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 337 cc
20.6 ci |
Bore/Stroke | 3.23x2.52 inches
82 x 64 mm |
Power | 11 hp
8.2 kW |
Compression | 7.7:1 |
Starter | manual recoil |
| electric OptOptional |
Starter volts | 12 |
Sparkplug | NGK BPR5ES |
Sparkplug gap | 0.030 inches
0.762 mm |

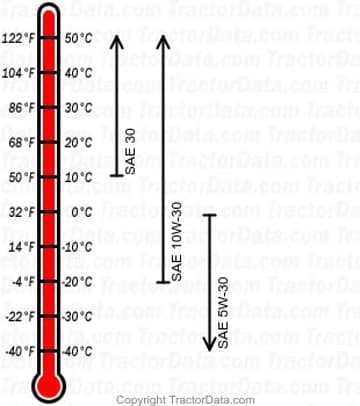

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.2 qts
1.1 L |
Oil change | 100 h |
