honda lawn tractors h3013
 | 1989 - 1992
Riding lawn mower | 1989 - 1992 | Riding lawn mower |
|---|---|---|---|
1989 - 1992 | |||
Riding lawn mower | |||
1989 - 1992 | |
|---|---|
Riding lawn mower |
Engine Detail | |
|---|---|
Honda GXV390 | |
gasoline | |
1-cylinder | |
air-cooled vertical-shaft | |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.46x2.52 inches
88 x 64 mm |
Power | 13 hp
9.7 kW |
Starter | electric |
Starter volts | 12 |
Sparkplug | NGK BPR5ES |

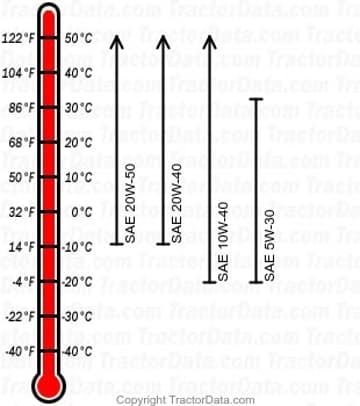

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.2 qts
1.1 L |
Oil change | 100 h |
