honda lawn tractors h5013
 | 1991 - 1999
Garden tractor | 1991 - 1999 | Garden tractor |
|---|---|---|---|
1991 - 1999 | |||
Garden tractor | |||
1991 - 1999 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Honda GX390 | |
gasoline | |
1-cylinder | |
air-cooled | |
Displacement | 388 cc
23.7 ci |
Bore/Stroke | 3.50x2.50 inches
89 x 64 mm |
Power | 13 hp
9.7 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Sparkplug gap | 0.040 inches
1.016 mm |

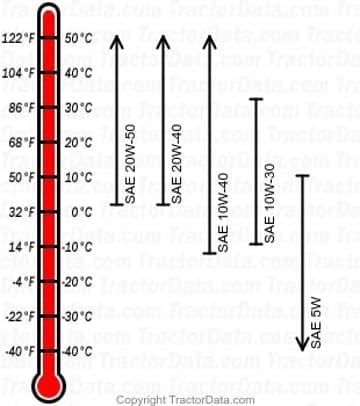

Engine Oil | |
|---|---|
 | |
Oil capacity | 1.2 qts
1.1 L |
