Honda H5518

The Honda H5518 is a tractor produced by Honda Lawn Tractors. It is equipped with a 634 cc 38.7 ci engine. The rated power output is 18 hp 13.4 kW. Transmission: 8 forward and 2 reverse. Operating weight: 948 lbs (2WD dry) 430 kg.

Overview

	1991 - 1999 Garden tractor
1991 - 1999
Garden tractor

Production
Manufacturer	Honda
Garden tractor

Variants
H5518A2	2WD
H5518A4	4WD

Honda H5518 Engine
18HP Honda 634cc 2-cyl gasoline
Engine details ...

Honda H5518 Transmission
8-speed gear
Transmission details ...

Mechanical
Two- or four-wheel drive
Steering	manual four-wheel
Mechanical shoe brakes
Two-post ROPS.

Capacity
Fuel	2.5 gal 9.5 L
Hydraulic system	0.53 gal 2.0 L

Hydraulics
Capacity	0.53 gal 2.0 L
Pressure	1280 psi 88.3 bar

Tractor hitch
Rear Type	0 *Optional. Honda kit RLK5000.
Rear lift (at ends)	550 lbs 249 kg
Front lift	550 lbs 249 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	2000
Front PTO	independent
Front PTO Type	2650

Dimensions & Tires
Wheelbase	51.4 inches 130 cm
Weight	948 to 1014 pounds
Front tire	20x7.00-12.2
Rear tire	24x8.00-14.2
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	30

References
Owner's Manual Tractor H5518H (31769611) published in 1990
Honda Multi-Purpose Tractors published in 1994

Engine

Engine Detail — 634 cc / 38.7 ci Gasoline

Manufacturer	Honda GX640
Fuel Type	Gasoline
Configuration	2-cylinder, liquid-cooled
Displacement	634 cc 38.7 ci
Bore/Stroke	3.00x2.80 inches 76 x 71 mm
Power	18 hp 13.4 kW
Fuel system	carburetor
Air cleaner	dry (4192753)
Rated RPM	3000
Starter	electric
Starter volts	12
Coolant capacity	2.9 qts 2.7 L
Sparkplug	NGK BPR5ES-11
Sparkplug gap	0.040 inches 1.016 mm
Intake valve clearance	0.010 inches 0.254 mm
Exhaust valve clearance	0.018 inches 0.457 mm
Oil capacity	2.1 qts 2.0 L

Transmission

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Oil capacity	4 qts 3.8 L
Four forward and two reverse gears with high and low range.

Dimensions

Honda H5518 Tires
Lawn/turf front	20x7.00-12.2
Lawn/turf rear	24x8.00-14.2

Dimensions
Wheelbase	51.4 inches 130 cm
Length	86.2 inches 218 cm
Width	41.7 inches 105 cm
Height (ROPS)	70.9 inches 180 cm
Weight	948 lbs (2WD dry) 430 kg
	1,014 lbs (4WD dry) 459 kg
Ground clearance	6.7 inches 17 cm

Attachments

Attachment overview
46" mid-mount mower deck
52" mid-mount mower deck
Snowblower
Blade
Front-end loader
The front-loader was only available for the four-wheel drive model (H5518A4).
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

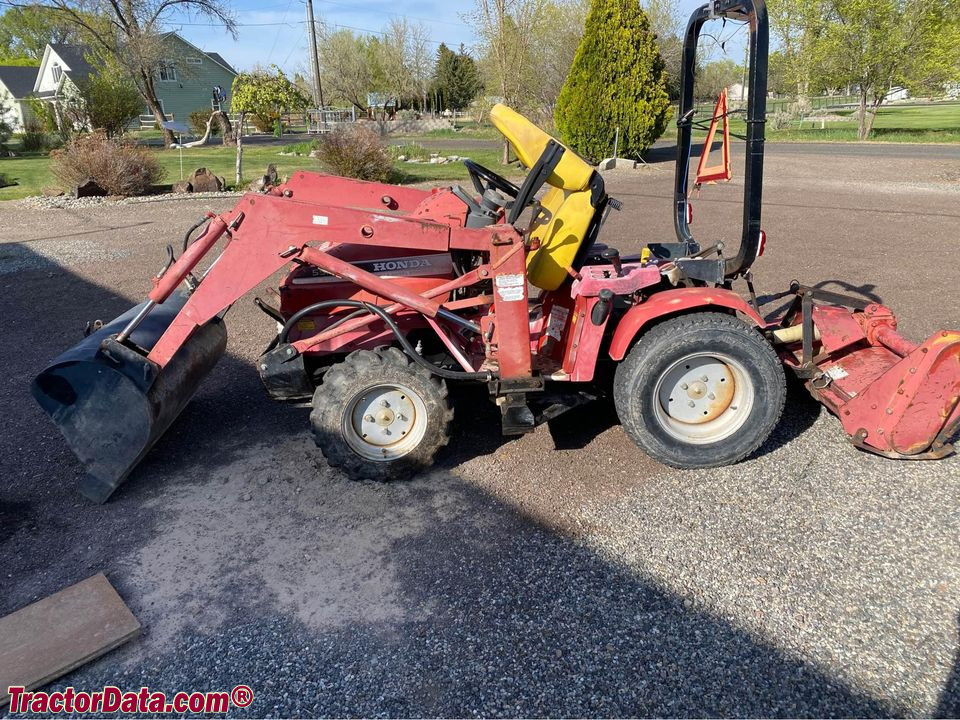

Photos

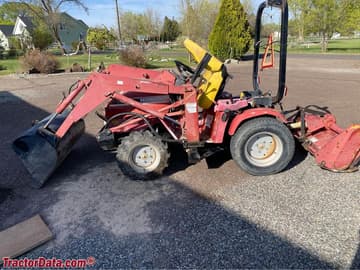

Honda H5518
