honda lawn tractors h5518
 | 1991 - 1999
Garden tractor | 1991 - 1999 | Garden tractor |
|---|---|---|---|
1991 - 1999 | |||
Garden tractor | |||
1991 - 1999 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Honda GX640 | |
gasoline | |
2-cylinder | |
liquid-cooled | |
Displacement | 634 cc
38.7 ci |
Bore/Stroke | 3.00x2.80 inches
76 x 71 mm |
Power | 18 hp
13.4 kW |
Fuel system | carburetor |
Air cleaner | dry (4192753) |
Rated RPM | 3000 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 2.9 qts
2.7 L |
Sparkplug | NGK BPR5ES-11 |
Sparkplug gap | 0.040 inches
1.016 mm |
Intake valve clearance | 0.010 inches
0.254 mm |
Exhaust valve clearance | 0.018 inches
0.457 mm |

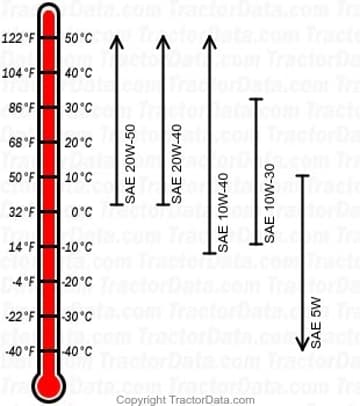

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.1 qts
2.0 L |
