honda lawn tractors h6522
 | 1991 - 1996
Garden tractor | 1991 - 1996 | Garden tractor |
|---|---|---|---|
1991 - 1996 | |||
Garden tractor | |||
1991 - 1996 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Honda GD1250 | |
diesel | |
3-cylinder | |
liquid-cooled horizontal-shaft | |
Displacement | 1235 cc
75.4 ci |
Bore/Stroke | 3.20x3.10 inches
81 x 79 mm |
Power (net) | 22 hp
16.4 kW |
Fuel system | direct injection |
Air cleaner | dual stage dry |
Rated RPM | 2600 |
Operating RPM | 900-2800 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 4.6 qts
4.4 L |
Engine Oil | |
|---|---|
 | |
Oil capacity | 3.7 qts
3.5 L |

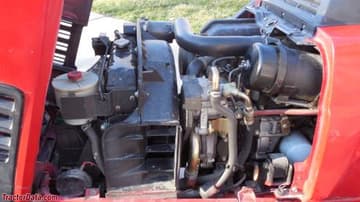

Honda H6522 Engine | |
|---|---|
 |
