Honda HT-R3009

The Honda HT-R3009 is a tractor produced by Honda Lawn Tractors. It is equipped with a 270 cc 16.5 ci engine. The listed engine power is Gasoline (listed): 8.5 hp / 6.3 kW. Transmission: 5 forward and 1 reverse. Operating weight: 364 lbs 165 kg.

Overview

	1985 - 1988 Riding lawn mower

Production
Manufacturer	Honda
Riding lawn mower

Honda HT-R3009 Engine
8.5HP Honda 270cc 1-cyl gasoline
Fuel tank	0.5 gal 1.9 L
Engine details ...

Honda HT-R3009 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	43.3 inches 109 cm
Weight	364 lbs 165 kg
Front tire	11x4.00-5
Rear tire	16x6.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
HT-R3009 published in 1986

Engine

Engine Detail — 270 cc / 16.5 ci Gasoline

Manufacturer	Honda GXV270
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	270 cc 16.5 ci
Bore/Stroke	3.03x2.28 inches 77 x 58 mm
Power	8.5 hp 6.3 kW
Starter	electric
Starter volts	12
Sparkplug	NGK BPR5ES
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	1.2 qts 1.1 L
Oil change	100 h

Transmission

Transmission — 5 forward and 1 reverse belt-driven gear

Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Honda HT-R3009 Tires
Lawn/turf front	11x4.00-5
Lawn/turf rear	16x6.50-8

Dimensions
Wheelbase	43.3 inches 109 cm
Length	59.1 inches 150 cm
Height (steering wheel)	39.4 inches 100 cm
Weight	364 lbs 165 kg
Front tread	22.4 inches 56 cm
Rear tread	25 inches 63 cm

Attachments

30" Mower deck
Type	mid-mount Honda
	1-blade with manual lift
Cutting width	30 inches 76 cm
Overall width	42.1 inches 106 cm
Cut height	1 to 3.5 inch 2 to 8 cm
Cut positions	6

Photos

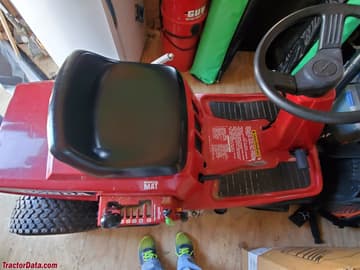

Honda HT-R3009
