Honda HT3810

The Honda HT3810 is a tractor produced by Honda Lawn Tractors. It is equipped with a 406 cc 24.8 ci engine. The rated power output is 10 hp 7.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 544.6 lbs 247 kg.

Overview

	1985 - 1989 Lawn tractor
1985 - 1989
Lawn tractor

Production
Manufacturer	Honda
Lawn tractor

Honda HT3810 Engine
10HP Honda 406cc 1-cyl gasoline
Fuel tank	1.88 gal 7.1 L
Engine details ...

Honda HT3810 Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	45.7 inches 116 cm
Weight	544.6 lbs 247 kg
Front tire	15x6.00-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12
Battery AH	30

References
Owner's Manual HT3810 (31750000) published in 1984
Honda Lawn Tractors published in 1986

Engine

Engine Detail — 406 cc / 24.8 ci Gasoline

Manufacturer	Honda G400
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	406 cc 24.8 ci
Bore/Stroke	3.40x2.80 inches 86 x 71 mm
Power	10 hp 7.5 kW
Starter	electric
Starter volts	12
Sparkplug gap	0.026 inches 0.660 mm
Oil capacity	1.27 qts 1.2 L

Transmission

Transmission — 5 forward and 1 reverse shaft-driven gear

Type	shaft-driven gear
Gears	5 forward and 1 reverse

Dimensions

Honda HT3810 Tires
Lawn/turf front	15x6.00-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	45.7 inches 116 cm
Length	69.1 inches 175 cm
Width	49.6 inches 125 cm
Height	41.1 inches 104 cm
Shipping weight	544.6 lbs 247 kg

Attachments

38" Mower deck
Type	mid-mount Honda
	2-blade with manual lift
Cutting width	38 inches 96 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	6

Photos

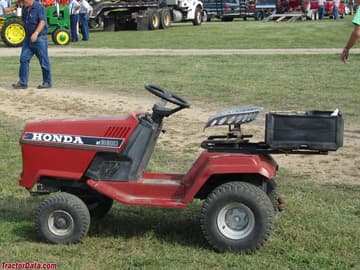

Honda HT3810

Honda HT3810.

Honda HT3810.
