Huffy Broadlawn 1055
The Huffy Broadlawn 1055 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 240 lbs 108 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
240 lbs
108 kg
Overview
 | 1972
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Lawn tractor | |
Huffy Broadlawn 1055 Engine | |
|---|---|
8HP Briggs & Stratton gasoline | |
Engine details ...  |
Huffy Broadlawn 1055 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 240 lbs
108 kg |
Front tire | 10x3.50 |
Rear tire | 15x5.00 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 8 hp
6.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Huffy Broadlawn 1055 Tires | |
|---|---|
Lawn/turf front | 10x3.50 |
Lawn/turf rear | 15x5.00 |
Dimensions | |
|---|---|
Shipping weight | 240 lbs
108 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Huffy |
1-blade | |
Cutting width | 26 inches
66 cm |
Cut height | 1.75 to 4 inch
4 to 10 cm |
Photos

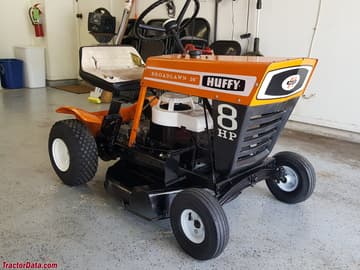

Huffy Broadlawn 1055, left side.
Huffy Broadlawn 1055, right side.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy Broadlawn 1055.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy Broadlawn 1055 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy Broadlawn 1055.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
