Huffy Fairlane 1014
The Huffy Fairlane 1014 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 1 forward and reverse. Operating weight: 138 lbs 62 kg.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Operating Weight
138 lbs
62 kg
Overview
 | 1972
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Riding lawn mower | |
Huffy Fairlane 1014 Engine | |
|---|---|
5HP Briggs & Stratton gasoline | |
Engine details ...  |
Huffy Fairlane 1014 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | continuous running |
Clutch | none |
Dimensions & Tires | |
|---|---|
Weight | 138 lbs
62 kg |
Front tire | 8x1.75 |
Rear tire | 10x2.75 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power (gross) | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Huffy Fairlane 1014 Tires | |
|---|---|
Lawn/turf front | 8x1.75 |
Lawn/turf rear | 10x2.75 |
Dimensions | |
|---|---|
Shipping weight | 138 lbs
62 kg |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Huffy |
1-blade | |
Cutting width | 24 inches
60 cm |
Cut height | 2 to 2.75 inch
5 to 6 cm |
Photos

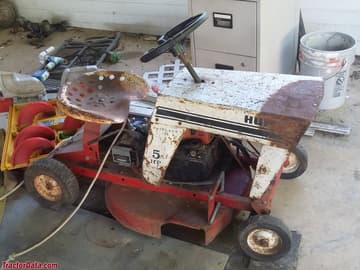

Huffy Fairlane 1014
Huffy Fairlane 1014
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy Fairlane 1014.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy Fairlane 1014 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy Fairlane 1014.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
