Huffy H1016
The Huffy H1016 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (gross): 5 hp / 3.7 kW. Transmission: 1 forward and reverse.
Engine Power
Gasoline (gross): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Overview
 | 1974
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Lawn tractor | |
Original price was $150 in 1974 | |
Huffy H1016 Engine | |
|---|---|
5HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Huffy H1016 Transmission | |
|---|---|
1-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Power (gross) | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse
Gears | 1 forward and reverse |
Dimensions
Huffy H1016 Tires |
|---|
Dimensions |
|---|
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Huffy |
1-blade with manual lift | |
Cutting width | 24 inches
60 cm |
Photos

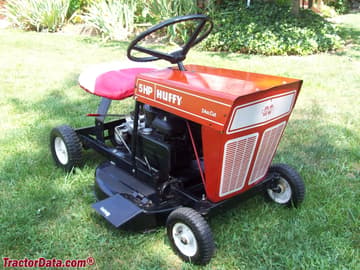

Huffy H1016
Huffy H1016
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy H1016.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy H1016 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy H1016.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
