Huffy H1056
The Huffy H1056 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 278 lbs 126 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
0.5 gal
1.9 L
Transmission
3 forward and 1 reverse
Operating Weight
278 lbs
126 kg
Overview
 | 1973
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Lawn tractor | |
Huffy H1056 Engine | |
|---|---|
8HP Briggs & Stratton gasoline | |
Fuel tank | 0.5 gal
1.9 L |
Engine details ...  | |
Huffy H1056 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 278 lbs
126 kg |
Front tire | 11x4.00 |
Rear tire | 15x5.00 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 8 hp
6.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Huffy H1056 Tires | |
|---|---|
Lawn/turf front | 11x4.00 |
Lawn/turf rear | 15x5.00 |
Dimensions | |
|---|---|
Shipping weight | 278 lbs
126 kg |
Attachments
26" Mower deck | |
|---|---|
Type | mid-mount Huffy |
1-blade | |
Cutting width | 26 inches
66 cm |
Cut height | 1.375 to 3 inch
3 to 7 cm |
Photos

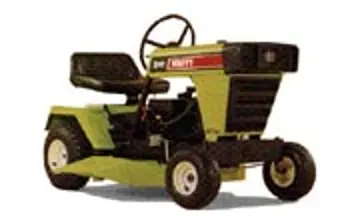

Huffy H1056 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy H1056.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy H1056 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy H1056.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
