Huffy Hawk 4845
The Huffy Hawk 4845 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (listed): 5 hp / 3.7 kW. Transmission: 1 forward and reverse. Operating weight: 187 lbs 84 kg.
Engine Power
Gasoline (listed): 5 hp / 3.7 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Operating Weight
187 lbs
84 kg
Overview
 | 1968
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Riding lawn mower | |
Huffy Hawk 4845 Engine | |
|---|---|
5HP Briggs & Stratton gasoline | |
Engine details ...  |
Huffy Hawk 4845 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
None brakes | |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Wheelbase | 35.5 inches
90 cm |
Weight | 187 lbs
84 kg |
Front tire | 10.25x3.50 |
Rear tire | 13x5.00 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Turfmaster published in 1968, by Huffman Manufacturing |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 5 hp
3.7 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
Huffy Hawk 4845 Tires | |
|---|---|
Lawn/turf front | 10.25x3.50 |
Lawn/turf rear | 13x5.00 |
Dimensions | |
|---|---|
Wheelbase | 35.5 inches
90 cm |
Shipping weight | 187 lbs
84 kg |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Huffy |
Cutting width | 24 inches
60 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

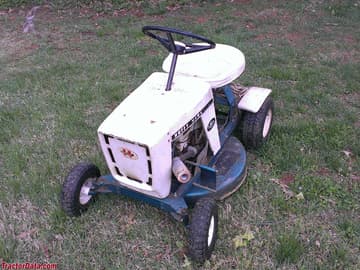

Huffy Hawk 4845
Huffy Hawk 4845
Huffy Hawk 4845
Huffy Hawk 4845
Huffy Hawk 4845
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy Hawk 4845.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy Hawk 4845 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy Hawk 4845.
Converted Equivalents:
Horsepower (HP)5 hp
Kilowatts (kW)3.7 kW
Metric Horsepower (PS / CV)5.1 PS
