Huffy HR8 1065
The Huffy HR8 1065 is a tractor produced by Huffy Lawn Tractors. The listed engine power is Gasoline (listed): 8 hp / 6.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 262 lbs 118 kg.
Engine Power
Gasoline (listed): 8 hp / 6.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
262 lbs
118 kg
Overview
 | 1972
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Huffy |
Lawn tractor | |
Huffy HR8 1065 Engine | |
|---|---|
8HP Briggs & Stratton gasoline | |
Engine details ...  |
Huffy HR8 1065 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station | |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Weight | 262 lbs
118 kg |
Front tire | 10x3.50 |
Rear tire | 15x6.00 |
Full dimensions and tires ...  | |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | air-cooled |
Power | 8 hp
6.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Huffy HR8 1065 Tires | |
|---|---|
Lawn/turf front | 10x3.50 |
Lawn/turf rear | 15x6.00 |
Dimensions | |
|---|---|
Shipping weight | 262 lbs
118 kg |
Attachments
32" Mower deck | |
|---|---|
Type | mid-mount Huffy |
2-blade | |
Cutting width | 32 inches
81 cm |
Cut height | 1.5 to 3 inch
3 to 7 cm |
Photos

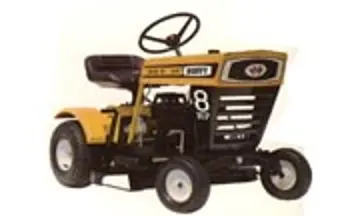

Huffy HR8 1065 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Huffy Lawn Tractors Huffy HR8 1065.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Huffy Lawn Tractors Huffy HR8 1065 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Huffy Lawn Tractors Huffy HR8 1065.
Converted Equivalents:
Horsepower (HP)8 hp
Kilowatts (kW)6 kW
Metric Horsepower (PS / CV)8.1 PS
