Husqvarna 2748GLS

The Husqvarna 2748GLS is a tractor produced by Husqvarna Lawn Tractors. It is equipped with a 724 cc 44.18 ci engine. The rated power output is 27 hp 20.1 kW. Transmission: Hydro-Gear G7.

Overview

	2008 - 2009 Garden tractor
2008 - 2009
Garden tractor

Production
Manufacturer	Husqvarna
Garden tractor
Original price was $3200 in 2009

Husqvarna 2748GLS Engine
27HP Briggs & Stratton 724cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Husqvarna 2748GLS Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station with 15-inch high-back seat.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	16
Rear tire	23
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 724 cc / 44.18 ci Gasoline

Manufacturer	Briggs & Stratton 44Q777
Configuration	2-cylinder, air-cooled vertical-shaft
Endurance Series V-Twin gasoline
Displacement	724 cc 44.18 ci
Power (gross)	27 hp 20.1 kW
Rated RPM	3600
Starter	electric
Starter volts	12

Husqvarna 2748GLS Engine
Image courtesy of Dan Furbish

Transmission

Transmission — Hydro-Gear G7

Transmission	Hydro-Gear G7
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Husqvarna 2748GLS Tires
Lawn/turf front	16 x 6.5
Lawn/turf rear	23 x 10.5

Dimensions
Front axle	Cast-iron

Attachments

48" Mower deck
Type	mid-mount Husqvarna
	3-blade
Cutting width	48 inches 121 cm
Cut height	0.5 to 3.5 inch 1 to 8 cm
Cut positions	6

Photos

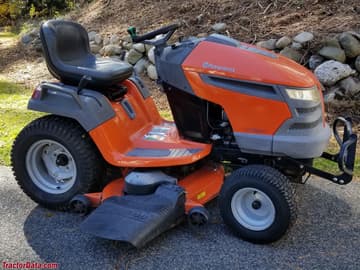

Husqvarna 2748GLS
