Husqvarna GTH24V52LS

The Husqvarna GTH24V52LS is a tractor produced by Husqvarna Lawn Tractors. It is equipped with a 726 cc 44.3 ci engine. The rated power output is 24 hp 17.9 kW. Transmission: Hydro-Gear G7.

Overview

	2012 Garden tractor
2012
Garden tractor

Production
Manufacturer	Husqvarna
Garden tractor
Original price was $3,200 in 2012

Husqvarna GTH24V52LS Engine
24HP Kawasaki 726cc 2-cyl gasoline
Fuel tank	4 gal 15.1 L
Engine details ...

Husqvarna GTH24V52LS Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Steering	manual
Open operator station with high-back vinyl seat.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Dimensions & Tires
Front tire	16.5x6.5-8
Rear tire	23x10.5-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	15
Battery CCA	230
Battery volts	12
Battery AH	28
Battery Group	U1R

Engine

Engine Detail — 726 cc / 44.3 ci Gasoline

Manufacturer	Kawasaki FR730V
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	726 cc 44.3 ci
Power (gross)	24 hp 17.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug	NGK BPR4ES
Sparkplug gap	0.030 inches 0.762 mm
Oil capacity	2 qts 1.9 L
Oil change	50 h

Transmission

Transmission — Hydro-Gear G7

Transmission	Hydro-Gear G7
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions

Husqvarna GTH24V52LS Tires
Lawn/turf front	16.5x6.5-8
Lawn/turf rear	23x10.5-12

Dimensions
Length	71.3 inches 181 cm
Width	53.3 inches 135 cm
Height	42.5 inches 107 cm
Front axle	Cast-iron

Attachments

52" Mower deck
Type	mid-mount Husqvarna
	3-blade
Cutting width	52 inches 132 cm
Overall width	66.8 inches 169 cm
Cut height	1.5 to 4 inch 3 to 10 cm
Cut positions	7

Photos

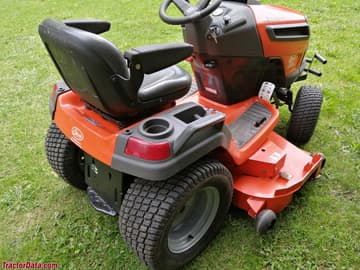

Husqvarna GTH24V52LS
