Husqvarna LTH1797

The Husqvarna LTH1797 is a tractor produced by Husqvarna Lawn Tractors. It is equipped with a 596 cc 36.4 ci engine. The listed engine power is Gasoline (gross): 17 hp / 12.7 kW. Transmission: Hydro-Gear 314-0510. Operating weight: 397 lbs 180 kg.

Engine Power

Gasoline (gross): 17 hp / 12.7 kW

Fuel & Capacities

2 gal 7.6 L

Transmission

Hydro-Gear 314-0510

Operating Weight

397 lbs 180 kg

Overview

	2004 - 2007 Lawn tractor

Production
Manufacturer	Husqvarna
Lawn tractor
Built in Orangeburg, South Carolina, USA

Husqvarna LTH1797 Engine
12.7KW Kohler 596cc 1-cyl gasoline
Fuel tank	2 gal 7.6 L
Engine details ...

Husqvarna LTH1797 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Weight	397 lbs 180 kg
Front tire	15x6.0-6
Rear tire	20x10-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 596 cc / 36.4 ci Gasoline

Manufacturer	Kohler SV530
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	596 cc 36.4 ci
Bore/Stroke	3.7x3.4 inches 94 x 86 mm
Power (gross)	17 hp 12.7 kW
Starter	electric
Starter volts	12

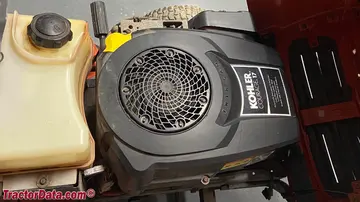

Husqvarna LTH1797 Engine

Image courtesy of Tony Grey

Transmission

Transmission — Hydro-Gear 314-0510

Transmission	Hydro-Gear 314-0510
Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Husqvarna LTH1797 Tires
Lawn/turf front	15x6.0-6
Lawn/turf rear	20x10-8

Dimensions
Weight	397 lbs 180 kg

Attachments

38" Mower deck
Type	mid-mount Husqvarna
	2-blade with manual lift
Cutting width	38 inches 96 cm

Photos

Husqvarna LTH1797

Recommended Implements & Sizing Guide

Engineering recommendations for Husqvarna Lawn Tractors Husqvarna LTH1797 based on its 17 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	1 to 2 Bottom (12")1 - 2 铧 (30 cm)	Light Duty	Ideal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing	4 ft (48 in)1.2 m	Light Duty	Pasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep	42 to 48 in105 - 120 cm	Light Duty	Covers compact tractor tire width.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Husqvarna Lawn Tractors Husqvarna LTH1797.

Estimated Continuous Field Runtime: 2.3 hrs

Approximately 2.3 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).

Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Husqvarna Lawn Tractors Husqvarna LTH1797 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Husqvarna Lawn Tractors Husqvarna LTH1797.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)17 hp

Kilowatts (kW)12.7 kW

Metric Horsepower (PS / CV)17.2 PS
